Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
4G-AE010-R-RF
SingleUnit antExtnsionBase(10ft cab included) REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

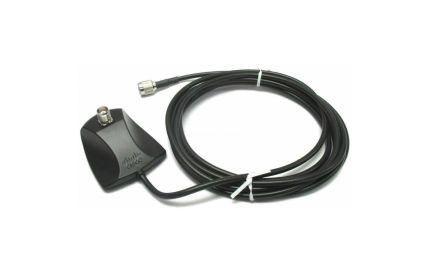

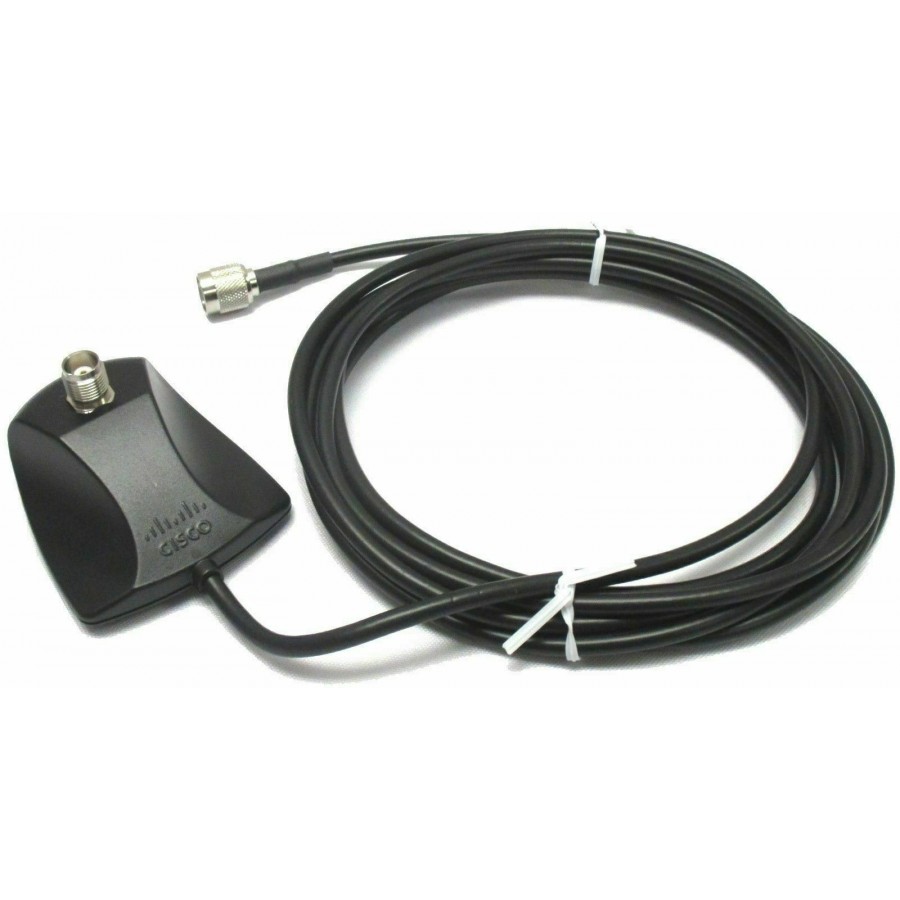

The Cisco 4G-AE010-R is a single-unit antenna extension base that includes a 10-foot (304.8 cm) cable. It is designed for use with Cisco 4G LTE integrated service routers and supports a frequency range up to 6 GHz. The antenna extension has less than 3 dB attenuation at or below 2.5 GHz. It features a TNC socket as the base connector and a TNC plug as the pigtail connector.
Key specifications include:
Dimensions: 2.8 x 2.4 x 1.8 inches (7.1 x 6.1 x 4.6 cm)
Weight: 6 oz (0.17 kg)
Cable: 10 ft non-plenum rated Pro-Flex Plus 195 cable
Base material: UL 94 V0PC and ABS plastic
This antenna extension is compatible with Cisco 4G wireless WAN EHWICs and is part of the antenna options for Cisco 800 and 809 Industrial Integrated Services Routers. It requires an antenna with a TNC (male) connector for proper connection and is used to extend antenna placement flexibility for better signal reception.
