Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
A901-4C-FT-D-RF
ASR901 RouterPAYG 4 GEPort-TDM+EthernetModel REMANUFACTURED

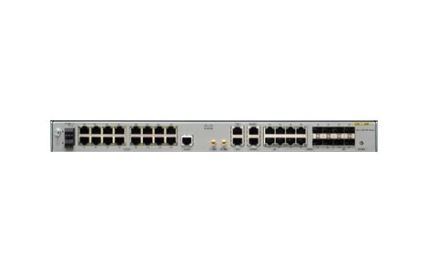

Cisco ASR 901 - router - rack-mountable
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, PPP, TDM, MLPPP |
| Device Type | Router |
| Dimensions (WxDxH) | 17.5 in x 10 in x 1.7 in |
| Enclosure Type | Rack-mountable - 1U |
| Features | MPLS support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MPLS VPN, SSH support, Equal-Cost Multipath (ECMP) |
| Line Rate | T-1/E-1 |
| Remote Management Protocol | SNMP, CLI |
| Routing Protocol | OSPF, IS-IS, BGP, static IP routing, ECMP, MPLS, Bidirectional Forwarding Detection (BFD) |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag , NEBS level 3, CISPR 22 Class A, IE |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, PPP, TDM, MLPPP |
| Depth | 10 in |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Features | MPLS support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Multiple Spanning Tree Protocol (MSTP) support, Quali |
| Flash Memory | 128 MB |
| Framing Format | G.703 |
| Height | 1.7 in |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Installed Qty | 2 (installed) / 2 (max) |
| Interfaces | WAN : 16 x T1/E1 |
| Line Rate | T-1/E-1 |
| Max Operating Temperature | 149 |
| Min Operating Temperature | -40 |
| Power Device | Internal power supply |
| RAM | 1 GB - DDR3 SDRAM |
| Remote Management Protocol | SNMP, CLI |
| Routing Protocol | OSPF, IS-IS, BGP, static IP routing, ECMP, MPLS, Bidirectional Forwarding Detection (BFD) |
| Weight | 7.16 lbs |
| Width | 17.5 in |
