Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
A901-6CZ-F-D-RF

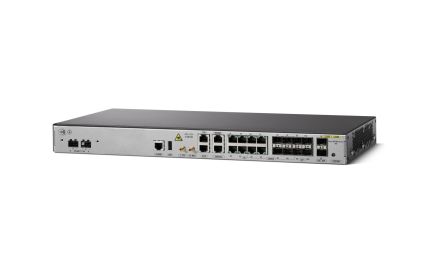

Cisco ASR 901 10G - router - rack-mountable
The Cisco ASR 901 series aggregation services routers are environmentally hardened, high-speed, low-power-consumption routers optimized for any-generation cell-site Radio Access Network (RAN) backhaul and Ethernet access. By using Cisco ASR 901 routers, operators can reduce backhaul operating costs, simplify and converge their RAN and Ethernet access networks, and enhance their profit opportunities with mobile and premium Ethernet services.
RAN cell sites are places of transformation between mobile radio and mobile transport networks. Cost-effective RAN backhaul requires the ability to simultaneously aggregate the transport of traffic from both traditional and next-generation radios across multiple transport options available at the cell site. The Cisco ASR 901 routers are designed to minimize operating costs and optimize this radio-to-transport transformation through scalable time-division multiplexing (TDM) and IP/Ethernet interfaces for any combination of multivendor, multigeneration radios and transport networks.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Device Type | Router |
| Dimensions (WxDxH) | 17.5 in x 12.6 in x 1.7 in |
| Enclosure Type | Rack-mountable - 1U |
| Features | IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Equal-Cost Multipath (ECMP), LLDP support, DHCP c |
| Manufacturer Warranty | 90 days warranty |
| Power | DC -24/-60 V |
| Remote Management Protocol | SNMP, Telnet, CLI |
| Routing Protocol | OSPF, IS-IS, BGP, static IP routing, ECMP, MPLS, Bidirectional Forwarding Detection (BFD) |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag , NEBS level 3, CISPR 22 Class A, IE |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth | 12.6 in |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Features | IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Multiple Spanning Tree Protocol (MSTP) support, Acces |
| Flash Memory | 128 MB |
| Height | 1.7 in |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Installed Qty | 2 (installed) / 2 (max) |
| Interfaces | 4 x 1000Base-T - RJ-45 |
| Max Operating Temperature | 149 |
| Min Operating Temperature | -40 |
| MTBF | 491,160 hours |
| Power Consumption Operational | 58 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| RAM | 512 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP, Telnet, CLI |
| Routing Protocol | OSPF, IS-IS, BGP, static IP routing, ECMP, MPLS, Bidirectional Forwarding Detection (BFD) |
| Service & Support Details | Limited warranty - 90 days |
| Service & Support | 90 days warranty |
| Voltage Required | DC -24/-60 V |
| Weight | 7.94 lbs |
| Width | 17.5 in |
