A9K-MPA-4X10GE-RF

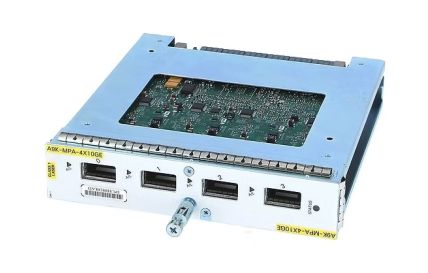

ASR 9000 4port 10GE ModularPort Adapter spare REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The Cisco A9K-MPA-4X10GE is a Modular Port Adapter for the ASR 9000 Series routers. It features:
4 ports of 10-Gigabit Ethernet.
Requires XFP optics for operation.
Compatible with Cisco IOS XR Software Release 4.2.1 or later.
Physical dimensions: approximately 6.37 inches wide, 1.36 inches high, and 6.70 inches long (8.30 inches including jackscrew).
Weight: about 31 ounces (0.87 kg).
This adapter is designed to be used with ASR 9000 Series modular line cards, providing 10GE connectivity in a compact form factor.
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Designed For | ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports Qty | 4 ports |
| Compatible Slots | 1 x expansion slot |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Designed For | Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2 |
| Device Type | Expansion module - 4 ports |
| Form Factor | Plug-in module |
| Interfaces | 4 x network - XFP |
