AIR-ANT2524DW-R-RF

Cisco Aironet Dual-Band Dipole Antenna - antenna

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

The Cisco AIR-ANT2524DW-R is a high-performance, dual-band dipole antenna designed for use with Cisco Aironet 2.4 GHz and 5 GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports.

Key features and specifications include:
Frequency Bands: Operates in both 2.4 GHz (2400 to 2500 MHz) and 5 GHz (5150 to 5850 MHz) bands.
Gain: Nominal gain of 2 dBi in the 2.4 GHz band and 4 dBi in the 5 GHz band.
Connector: RP-TNC plug.
Physical Characteristics:
Antenna length: 6.63 inches (168.5 mm)
Antenna width: 0.83 inches (21 mm)
Radome length: 4.88 inches (124 mm)
Weight: 1.3 oz
Beamwidth: Elevation plane 3 dB beamwidth of 63 degrees at 2.4 GHz and 39 degrees at 5 GHz.
VSWR: Less than 2:1.
Operating Environment: Indoor, office environments.
Operating Temperature: -4° to 140°F (-20°C to 60°C).

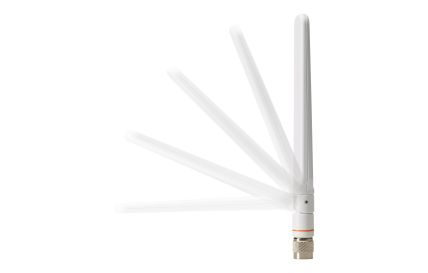

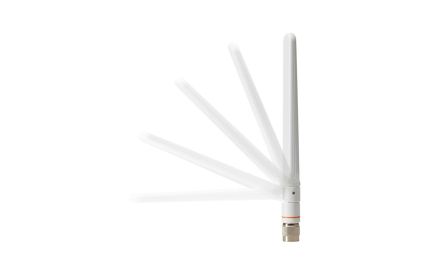

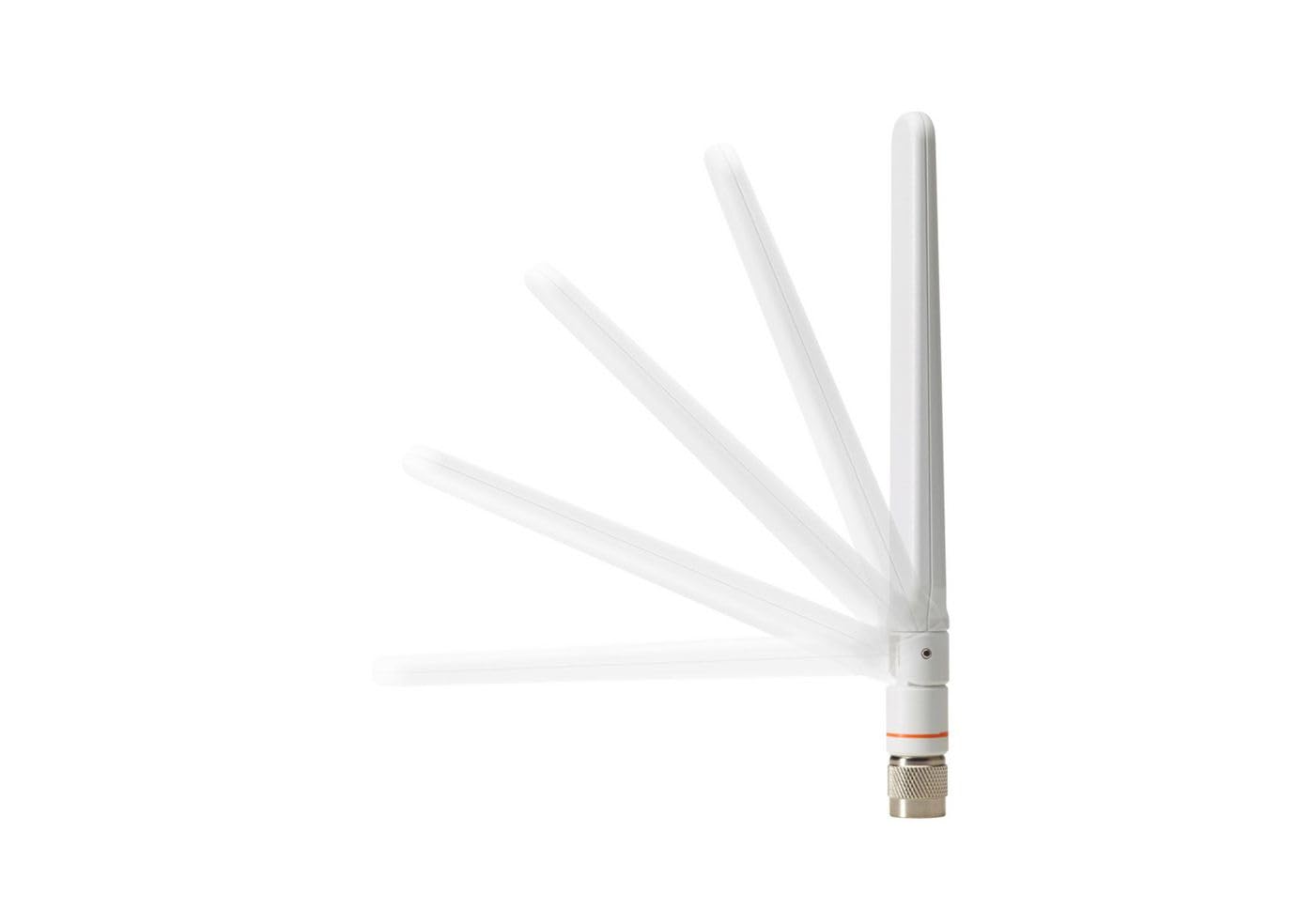

Mounting: The antenna has an articulated base that can rotate 360 degrees at the connection point and tilt from 0 to 90 degrees at its joint.
Radome Color: White (distinguishing it from similar models with black or gray radomes).
System Compatibility: Designed for Cisco Aironet access points supporting simultaneous dual-band operation with dual-band antenna ports labeled in orange text.

This antenna is suitable for indoor use and provides flexible mounting and orientation options to optimize wireless coverage. It is part of the Cisco Aironet dual-band dipole antenna family, which includes similar models differing mainly in radome color.
