AIR-ANT2568VGNS-RF
2.4GHz6dBi/5GHz8dBiDualBandOmniAntennaNCnnctr REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

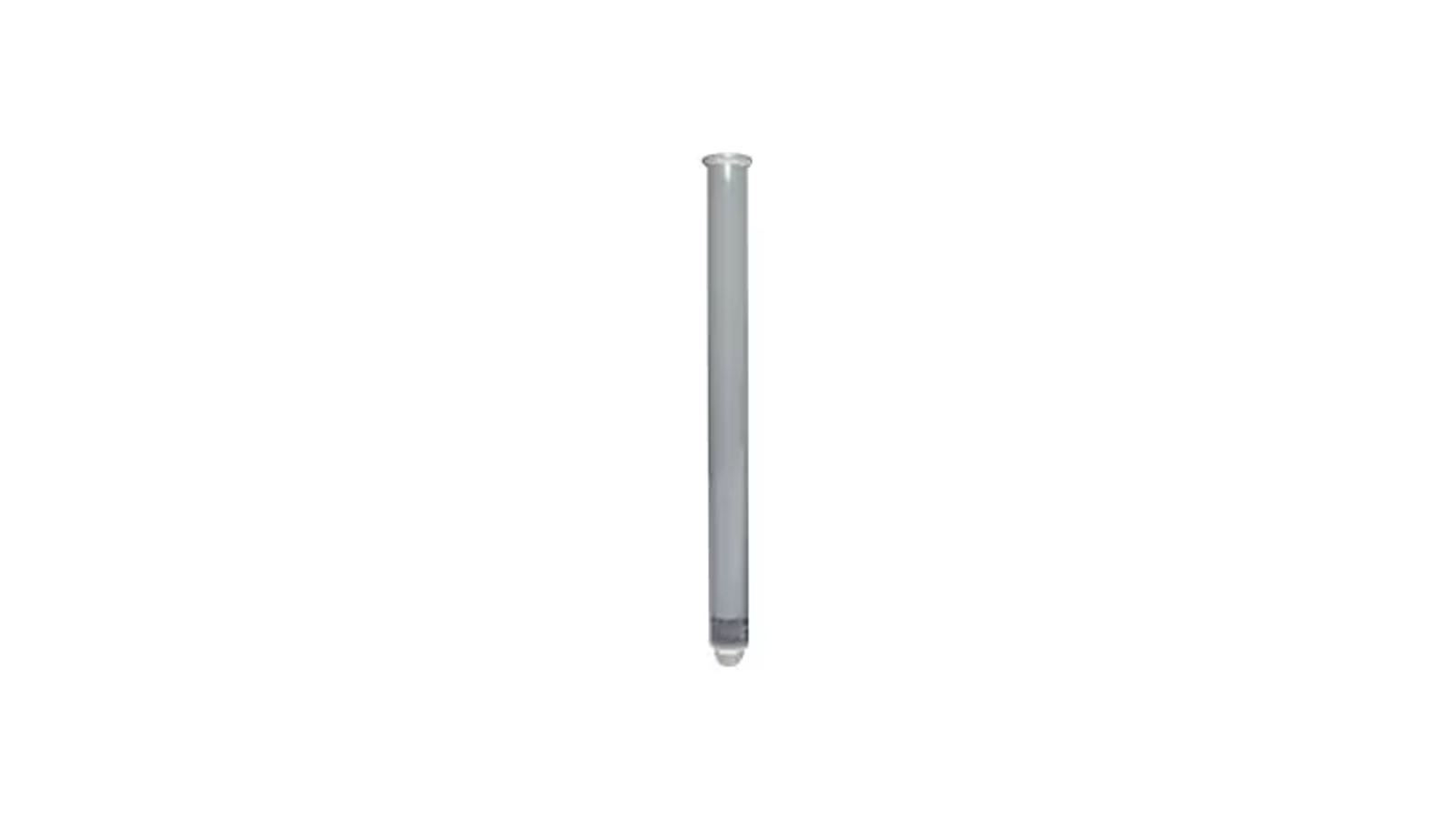

The AIR-ANT2568VGNS is a Cisco Aironet dual-band omnidirectional antenna designed for use with Cisco Aironet outdoor access points.
Key specifications:
Antenna Type: Omni-directional
Operating Frequency Range: 2400-2483 MHz and 5150-5925 MHz
VSWR: 1.5:1 (2.4 GHz band), 2:1 (5 GHz band)
Nominal Input Impedance: 50 Ohms
Gain: 6 dBi (2.4 GHz), 8 dBi (5 GHz)
Polarization: Vertical
Azimuth Plane Ripple: Maximum 2 dB
Elevation Plane 3 dB Beamwidth: 24° (2.4 GHz), 11° (5 GHz)
Azimuth Plane 3 dB Beamwidth: Omni-directional
Physical Dimensions: Length 14.8 inches (377 mm), Diameter 1.25 inches (31.75 mm)
Weight: 7.2 oz (204.1 g)
Connector: N-Male
Operational Temperature: -22 to 158°F (-30 to 70°C)
Ingress Protection: IP67 rated (water and foreign body ingress protection)
Wind Rating: Operational up to 100 mph (161 kph), survival up to 136 mph (218 kph)
This antenna is suitable for outdoor environments and is designed to provide reliable dual-band coverage with vertical polarization and omnidirectional radiation patterns. It is compatible with Cisco Aironet outdoor access points.
