Notes:
Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
ASA-IC-6GE-CU-C-RF
ASA5545X5555X IntfCard6port 10/100/1000RJ45 REMANUFACTURED
Out of Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

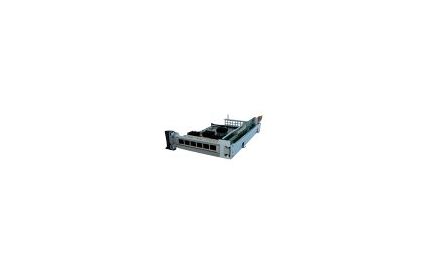

Cisco ASA Interface Card - expansion module
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Designed For | ASA 5545-X Firewall Edition, 5545-X IPS Edition, 5555-X Firewall Edition, 5555-X IPS Edition |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 5.3 in x 9.1 in x 1.6 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 90 days warranty |
| Ports | Gigabit Ethernet x 6 |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15 A, AS/ |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Depth | 9.1 in |
| Designed For | Cisco ASA 5545-X Firewall Edition, 5545-X IPS Edition, 5555-X Firewall Edition, 5555-X IPS Edition |
| Device Type | Expansion module |
| Features | Jumbo Frames support |
| Form Factor | Plug-in module |
| Height | 1.6 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Interfaces | 6 x 1000Base-T - RJ-45 |
| Max Operating Temperature | 113 |
| Min Operating Temperature | 32 |
| Ports | Gigabit Ethernet x 6 |
| Service & Support | Limited warranty - 90 days |
| Weight | 15.87 oz |
| Width | 5.3 in |
