ASA5525-K8-RF

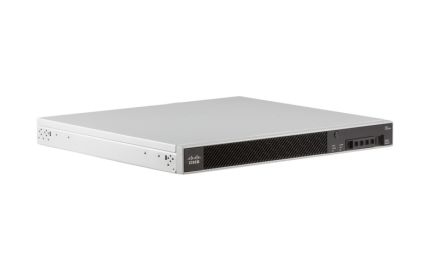

Cisco ASA 5525-X Firewall Edition - security appliance

In Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

The Cisco ASA5525-K8 is a model of the Cisco ASA 5525-X Firewall Edition. It includes firewall services with support for 750 IPsec VPN peers and 2 SSL VPN peers. The device features 8 copper Gigabit Ethernet data ports and 1 copper Gigabit Ethernet management port. It comes with an AC power supply and supports Active/Active High Availability with 2 security contexts. The encryption provided is DES (Data Encryption Standard) license. This model is part of the ASA 5500-X series next-generation firewalls designed for robust security at the internet edge.

Key features:
Firewall services with 750 IPsec VPN peers and 2 SSL VPN peers
8 copper Gigabit Ethernet data ports and 1 management port
AC power supply
Active/Active High Availability support
2 security contexts
DES encryption license
This product is within Cisco's ASA 5500-X series, which offers enhanced throughput, interface density, and integrated services such as IPS and Application Visibility and Control without requiring separate hardware modules 1.

CapacityIPSec VPN peers: 750
Data Link ProtocolGigabit Ethernet
Device TypeSecurity appliance
Dimensions (WxDxH)16.9 in x 15.6 in x 1.7 in
Form FactorRack-mountable - 1U
Manufacturer Warranty90 days warranty
PerformanceFirewall throughput: 2 Gbps
Ports Qty8
PowerAC 120/230 V ( 50/60 Hz )
RAM8 GB
CapacityIPSec VPN peers : 750
Compliant StandardsVCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CA
Connectivity TechnologyWired
Data Link ProtocolGigabit Ethernet
Depth15.6 in
Device TypeSecurity appliance
Encryption AlgorithmDES
Expansion Slots1 (total) / 1 (free) x expansion slot
FeaturesFirewall protection, VPN support, VLAN support, High Availability
Form FactorRack-mountable
Height1.7 in
Height (Rack Units)1U
Installed Qty1
Interfaces8 x 1000Base-T - RJ-45
Max Operating Temperature104
Max Supported Qty1
Min Operating Temperature23
PerformanceFirewall throughput : 2 Gbps
Ports Qty8
Power DeviceInternal power supply
Power Provided400 Watt
Rack Mounting KitIncluded
RAM8 GB
Service & SupportLimited warranty - 90 days
Software IncludedDrivers & Utilities
Status IndicatorsPower, HDD activity, active, alarm
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Weight14.99 lbs
Width16.9 in
