Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
ASR-9001-RF

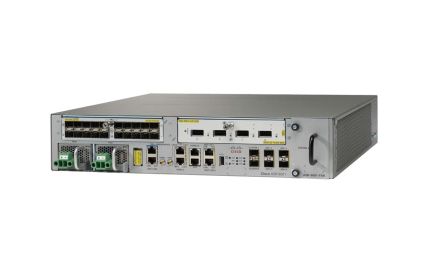

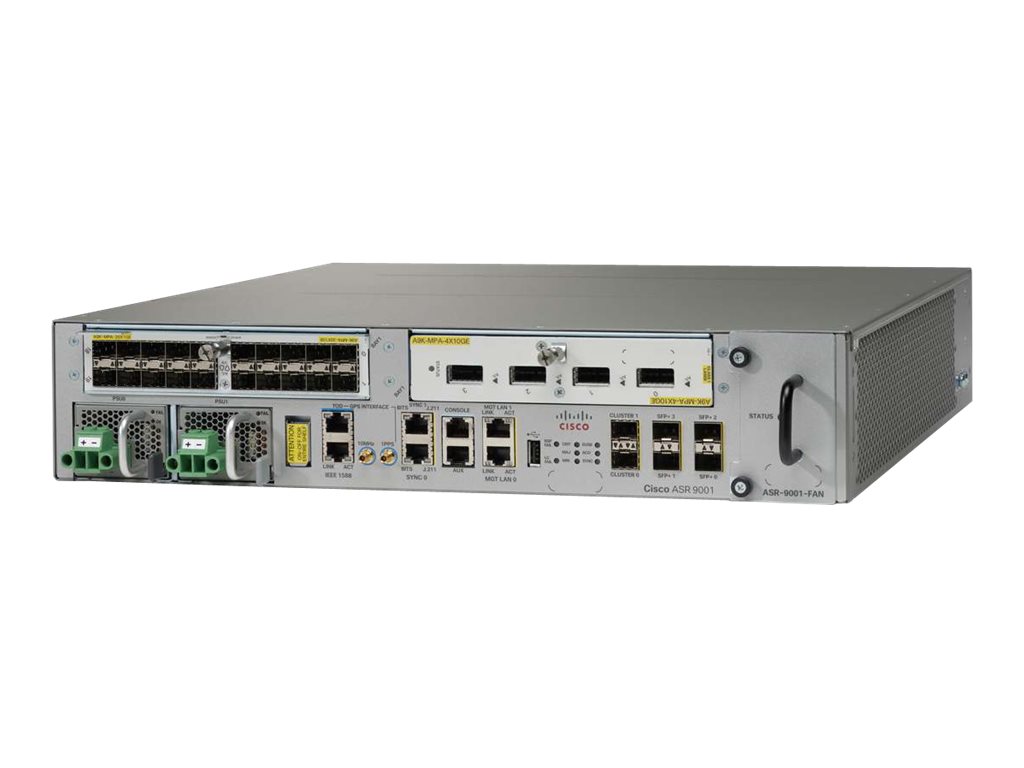

Cisco ASR 9001 - router - rack-mountable
Cisco ASR 9001 - router - rack-mountable
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Device Type | Router |
| Dimensions (WxDxH) | 17.4 in x 18.5 in x 3.5 in |
| Enclosure Type | Rack-mountable - 2U |
| Features | Quality of Service (QoS), Non-Stop Routing (NSR), DWDM |
| Manufacturer Warranty | 1 year warranty |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-4-11, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 6 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Depth | 18.5 in |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 2U |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Features | Quality of Service (QoS), Non-Stop Routing (NSR), DWDM |
| Height | 3.5 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Installed Qty | 2 (installed) / 2 (max) |
| Interfaces | 4 x 10Gb Ethernet - SFP+ |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| RAM | 8 GB |
| Service & Support Details | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Service & Support | 1 year warranty |
| Weight | 30.2 lbs |
| Width | 17.4 in |
