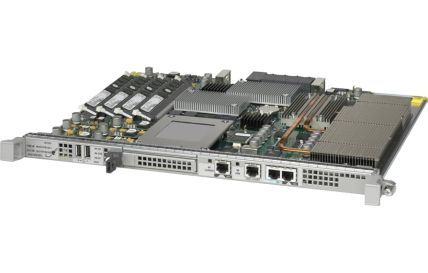

ASR1000-RP2-RF
ASR1000 Route Processor 2, 8GB DRAM, Spare REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The ASR1000-RP2-RF is a professionally remanufactured Cisco ASR 1000 Series Route Processor 2, providing the control plane intelligence and system management for Cisco ASR 1001, 1002, 1004, 1006, and 1013 aggregation services routers. The RP2 delivers improved CPU and memory performance over the original RP1, supporting larger routing tables, more complex QoS policies, and advanced IOS-XE feature sets required by enterprise WAN core and service provider edge routing deployments. Dual RP2 configurations provide nonstop forwarding high availability.
This remanufactured RP2 meets Cisco's ASR 1000 control plane performance and IOS-XE compatibility specifications. Each unit has been tested for routing protocol stability, system management functionality, and ASR 1000 chassis integration with supported configurations.
Key Features:
• ASR 1000 Route Processor 2 with enhanced CPU and memory over RP1 generation
• Supports larger routing tables and complex QoS policies for enterprise WAN
• Full IOS-XE feature set including OSPF, BGP, MPLS, and advanced QoS
• Compatible with ASR 1001, 1002, 1004, 1006, and 1013 chassis platforms
• Dual RP2 support enabling nonstop forwarding high availability
• Cisco IOS-XE programmability via NETCONF, YANG, and REST APIs
This refurbished route processor is ideal for enterprise WAN architects and service providers maintaining or upgrading Cisco ASR 1000 routing infrastructure requiring improved control plane performance. By choosing a remanufactured Cisco ASR 1000 RP2, you upgrade router control plane capability at a fraction of new hardware cost.
| Capacity | IPv4 routes: 4000000 |
| Designed For | ASR 1004, 1004 FPI Bundle, 1004 HA Bundle, 1004 Security HA Bundle, 1004 VPN and Firewall Bundle, 1004 VPN Bundle, 1006, 1006 BB Bundle, 1006 FPI Bundle, 1006 HA Bundle, 1006 Security HA Bundle, 1006 VPN and Firewall Bundle, 1006 VPN Bundle |
| Device Type | Router |
| Dimensions (WxDxH) | 16.9 in x 14.2 in x 0.8 in |
| Enclosure Type | Plug-in module |
| Features | VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), MPLS VPN |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Capacity | IPv4 routes : 4000000 |
| Compliant Standards | FCC Class B certified, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, VCCI-II, EN55024, CISPR 22, EN50082-1, EN55022 Class B, |
| Connectivity Technology | Wired |
| Depth | 14.2 in |
| Designed For | Cisco ASR 1004, 1004 FPI Bundle, 1004 HA Bundle, 1004 Security HA Bundle, 1004 VPN and Firewall Bundle, 1004 VPN Bundle, 1006, 1006 BB Bundle, 1006 FP |
| Device Type | Router |
| Enclosure Type | Plug-in module |
| Expansion Slots | 2 memory |
| Features | VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), MPLS VPN |
| Height | 0.8 in |
| Humidity Range Operating | 5 - 85% |
| Interfaces | Management : 1 x 10Base-T/100Base-TX - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 41 |
| RAM | 8 GB (installed) / 16 GB (max) - DDR2 SDRAM |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Status Indicators | Power, active, standby, status, alarm |
| Weight | 5.07 lbs |
| Width | 16.9 in |
