Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
ASR1001-X-PWRAC-RF
Cisco - power supply - hot-plug / redundant - 250 Watt
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

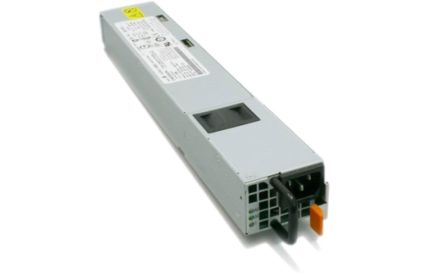

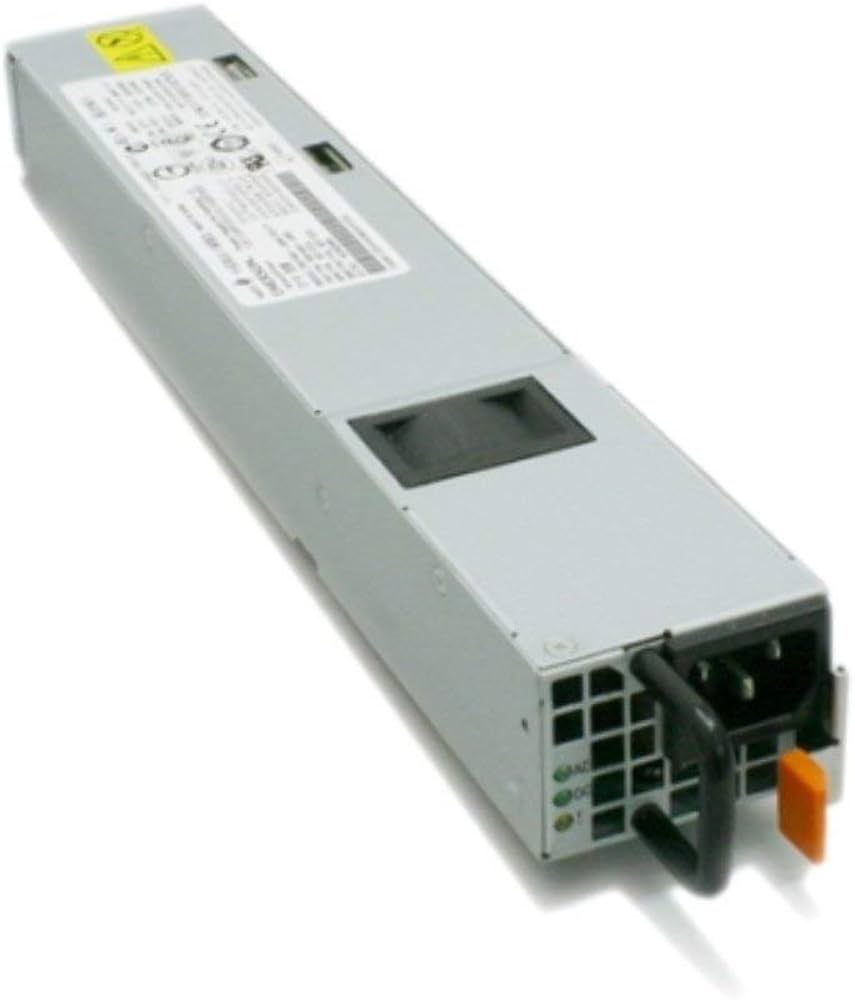

ASR 1001-X AC Power Supply (ASR1001-X-PWRAC):
Provides 250 W output power with DC voltage output of +12 V.
Operates between +85 and +264 VAC input voltage.
The AC power supply is hot-pluggable and installed in the rear of the chassis.
The input inlet is an IEC60320 C14 type filtered AC connector rated at 10 A.
The router supports dual redundant power supplies in a 1+1 configuration for high availability.
Power supplies share current on the 12 V output.
The power supply unit includes FAIL and OK LEDs for status indication.
The power supply is secured with captive screws and a retaining latch for easy installation and removal without impacting system operation.
This AC power supply is specifically designed for the ASR 1001-X router to ensure reliable power delivery and redundancy in enterprise and service provider environments.
| Designed For | ASR 1001-X |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Input Voltage | AC 85-264 V |
| Power Capacity | 250 Watt |
