Notes:
Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
ASR55-CHS-SYS-RF
ASR5500BaseChasisComplete2PFU2F2RFanTray2Filt REMANUFACTURED
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

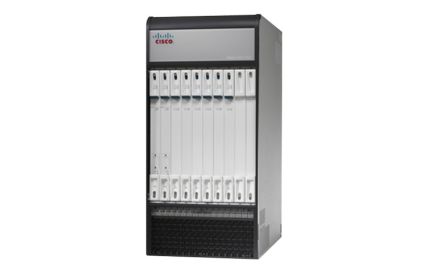

Cisco ASR 5500 - modular expansion base - rack-mountable
| Device Type | Modular expansion base |
| Dimensions (WxDxH) | 17.1 in x 27.5 in x 36.7 in |
| Enclosure Type | Rack-mountable - modular - 21U |
| Features | Front to back airflow, cable management |
| Manufacturer Warranty | 1 year warranty |
| Power | DC -48 V |
| Connectivity Technology | Wired |
| Depth | 27.5 in |
| Device Type | Modular expansion base |
| Enclosure Type | Rack-mountable - modular - 21U |
| Expansion Slots | 20 (total) / 20 (free) x expansion slot |
| Features | Front to back airflow, cable management |
| Height | 36.7 in |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Included Accessories | Fan tray |
| Installed Modules Qty (Max) | 0 (installed) / 20 (max) |
| Installed Qty | 2 (installed) / 8 (max) |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Status Indicators | System |
| Voltage Required | DC -48 V |
| Weight | 112.99 lbs |
| Width | 17.1 in |
