C-ANT9101-RF
2.4/5/6GHzCeilingMountOmniAnt8-portDARTSelfID REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

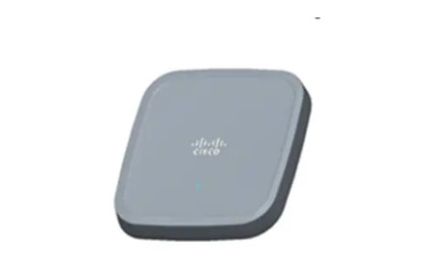

The Cisco C-ANT9101 is a dual-band polarization-diverse ceiling-mount omnidirectional antenna designed for 2.4 GHz and 5/6 GHz frequency ranges. It features the following key characteristics:
Frequency Range: 2.4 to 2.484 GHz and 5.15 to 7.125 GHz.
Gain: 2 dBi at 2.4 GHz and 6 dBi for ports A through D, with 3 dBi for ports E through H at 5 GHz.
Polarization: Dual polarized.
Azimuth 3-dB Beamwidth: Omnidirectional.
Antenna Connector: DART connector.
Mounting: Ceiling mount.
Antenna Type: Omnidirectional.
Design: The antenna has a lower profile than an access point mounted on a ceiling rail, allowing the AP to be placed above ceiling tiles for a more secure and tamper-resistant installation.
Self-Identifying Antenna (SIA): Contains circuitry to automate provisioning and detection.
LED Indicator: Includes an LED that mimics the access point's LED status to indicate active status.
Cable: Uses a single insertion cable, simplifying installation.
Use Case: Ideal for installations in the center of ceiling tiles, providing a smaller profile and aesthetic integration with Cisco Catalyst 9100 series access points.
The antenna supports 5 GHz in 8x8 mode and 2.4 GHz in 4x4 mode, as well as BLE/IoT and RF ASIC functionality, but does not support dual 5 GHz due to its smaller size.
