C-ANT9103-RF
2.4/5/6GHzDirectionalAntenna,8-portDARTSelfID REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

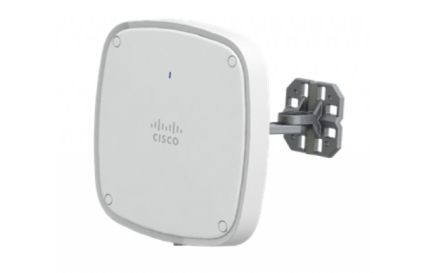

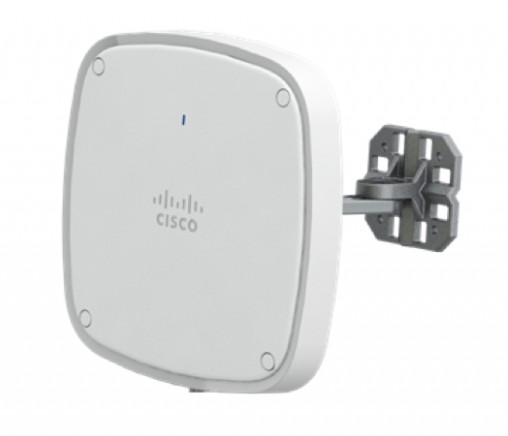

The Cisco C-ANT9103 is a 2.4 GHz, 5/6 GHz Dual-Band Polarization-Diverse Directional Patch Antenna designed for use with Cisco Catalyst series access points.
Key features:
An octal DART port polarization-diverse patch antenna operating over the 2.4 GHz band and extended 5 GHz band (up to 7.125 GHz), including IoT.
8 RF paths and 16 digital lines, with an LED indicator.
Ships with an articulating mount for flat surfaces and masts, adjustable in both horizontal and vertical planes.
Suitable for indoor and outdoor environments.
Includes circuitry for self-identification by Cisco Catalyst Series access points.
Designed for use with access points requiring four dual-band and four 5/6 GHz antennas.
The antenna has a right-angle DART connector allowing an optional bracket to mount the AP behind the antenna for a clean installation.
It provides a directional, 6 dBi gain antenna pattern suitable for wall or pole mounting, ideal for manufacturing and retail venues.
The antenna includes a smart LED that mimics the AP LED status.
