C2960X-STACK-RF
Catalyst 2960-X FlexStack PlusStackingMod opt REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

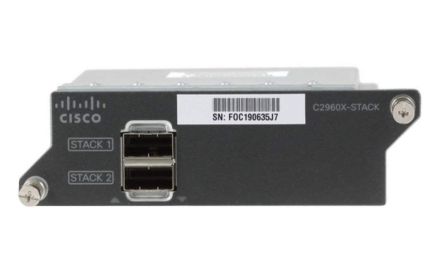

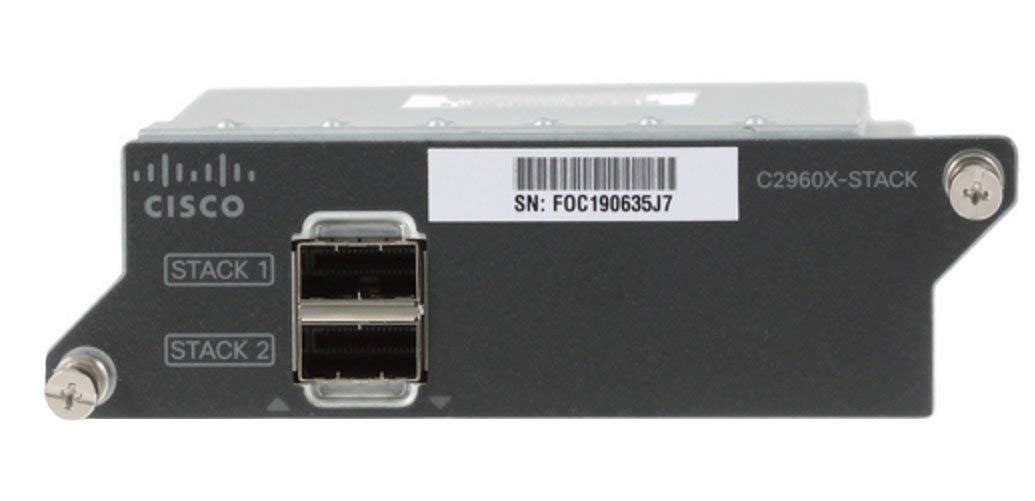

The C2960X-STACK is the Cisco FlexStack-Plus hot-swappable stacking module designed for the Cisco Catalyst 2960-X Series switches. It enables stacking of up to eight Catalyst 2960-X or 2960-XR switches, allowing them to operate as a single logical unit with unified management and configuration. The FlexStack-Plus module supports a stack bandwidth of 80 Gbps and is backward compatible with FlexStack modules used in Catalyst 2960-S and 2960-SF switches, enabling mixed stacking with up to four switches in such configurations.
Key features and details include:
Stacking Capacity: Up to 8 switches in a stack with FlexStack-Plus; mixed stacks with 2960-S/SF switches support up to 4 switches.
Stack Bandwidth: 80 Gbps for FlexStack-Plus; 40 Gbps in mixed stacks with 2960-S/SF.
Hot-Swappable: The stacking module can be installed or replaced without powering down the switch.
Compatibility: Supports stacking with Catalyst 2960-X, 2960-XR, and 2960-S/SF switches (with some limitations).
Stacking Cables: Available in lengths of 0.5 m, 1 m, and 3 m to suit different rack configurations.
Investment Protection: Backward compatibility with FlexStack modules and support for FlexStack-Extended modules for long-distance stacking using fiber or hybrid modules.
This module is essential for creating scalable, manageable switch stacks in enterprise networks using the Catalyst 2960-X series.
| Designed For | Catalyst 2960X-24PD-L, 2960X-24PS-L, 2960X-24TD-L, 2960X-24TS-L, 2960X-24TS-LL, 2960X-48FPD-L, 2960X-48FPS-L, 2960X-48LPD-L, 2960X-48LPS-L, 2960X-48TD-L, 2960X-48TS-L, 2960XR-24PS-I, 2960XR-24TS-I |
| Device Type | Network stacking module |
| Form Factor | Plug-in module |
| Compatible Slots | 1 x expansion slot |
| Connectivity Technology | Wired |
| Designed For | Cisco Catalyst 2960X-24PD-L, 2960X-24PS-L, 2960X-24TD-L, 2960X-24TS-L, 2960X-24TS-LL, 2960X-48FPD-L, 2960X-48FPS-L, 2960X-48LPD-L, 2960X-48LPS-L, 2960 |
| Device Type | Network stacking module |
| Features | Hot swap module replacement |
| Form Factor | Plug-in module |
| Interfaces | 2 x stack port |
