Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
C3850-NM-4-1G-RF

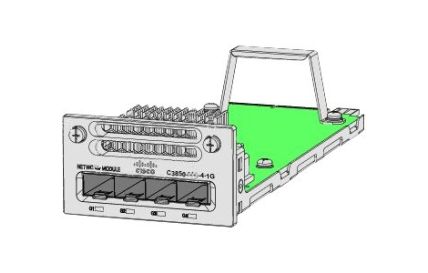

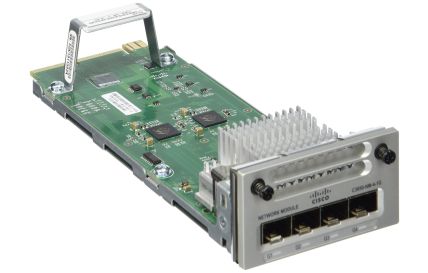

Cisco Catalyst 3850 4 x 1GE Network Module REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The C3850-NM-4-1G is a network module for the Cisco Catalyst 3850 Series Switches that provides four 1-Gigabit SFP module slots. It supports any combination of standard SFP modules, but SFP+ modules are not supported. If an SFP+ module is inserted into this 1 G network module, it will not operate, and the switch will log an error message.
This module is supported on the following Catalyst 3850 switch models:
WS-C3850-24T/P/U
WS-C3850-48T/F/P/U
WS-C3850-12X48U
WS-C3850-12S
WS-C3850-24S
All ports on the C3850-NM-4-1G module are natively GigabitEthernet and are configured as GigabitEthernet1/1/1 through GigabitEthernet1/1/4. Only these four interfaces are valid; other interfaces that appear in the CLI should not be used.
This module is not supported on the 12-port and 24-port SFP+ models of the Catalyst 3850 switches.
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Designed For | Catalyst 3850-12, 3850-12X48, 3850-24, 3850-48, C3850-24 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports Qty | 4 ports |
| Compatible Slots | 1 x expansion slot |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Designed For | Cisco Catalyst 3850-12S-E, 3850-12S-S, 3850-12S-X, 3850-12X48U-E, 3850-12X48U-S, 3850-24P-BA, 3850-24P-E, 3850-24P-L, 3850-24P-S, 3850-24S-E, 3850-24S |
| Device Type | Expansion module - 4 ports |
| Form Factor | Plug-in module |
| Interfaces | 4 x network - SFP (mini-GBIC) |
| MTBF | 7,052,100 hours |
| Status Indicators | Port status |
| Weight | 10.58 oz |
