Notes:
Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.

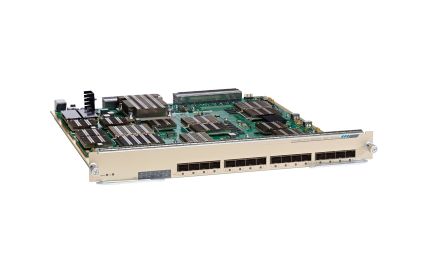

C6800-16P10G-RF
Catalyst 6800 16port 10GE with integratd DFC4 REMANUFACTURED
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4 - expansion module
| Cabling Type | Ethernet 10GBase-X |
| Capacity | Multicast entries (IPv4): 64000 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 40 Gbps |
| Designed For | Catalyst 6503-E, 6504-E, 6506-E, 6506-E IDSM-2, 6506-E NAM-3, 6509-E, 6509-E 10Gig, 6509-E NAM-3, 6509-V-E, 6807-XL, C6504-E |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 15.4 in x 16.4 in x 1.7 in |
| Form Factor | Plug-in module |
| MAC Address Table Size | 128K entries |
| Performance | Switching fabric bandwidth: 80 Gbps |
| RAM | 2 GB |
| System Requirements | Cisco IOS 15.2(1)SY |
| Cabling Type | Ethernet 10GBase-X |
| Capacity | Multicast entries (IPv4) : 64000 |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 40 Gbps |
| Depth | 16.4 in |
| Designed For | Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Applicatio |
| Device Type | Expansion module |
| Encryption Algorithm | 128-bit AES |
| Expansion Slots | 4 (total) / 4 (free) x expansion slot |
| Features | MPLS support, IGMP snooping, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Cont |
| Form Factor | Plug-in module |
| Height | 1.7 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| MAC Address Table Size | 128K entries |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| OS Required | Cisco IOS 15.2(1)SY |
| Performance | Switching fabric bandwidth : 80 Gbps |
| Power Consumption Operational | 303.68 Watt |
| RAM | 2 GB |
| Remote Management Protocol | RMON, SMON |
| Status Indicators | Link activity, status |
| Weight | 11.02 lbs |
| Width | 15.4 in |
