Notes:

Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

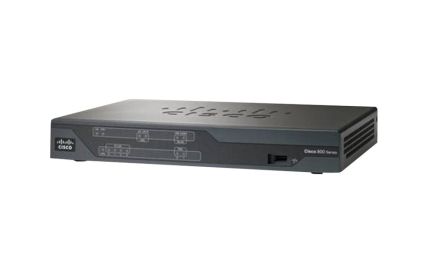

C886VA-K9-RF

Cisco 886 VDSL/ADSL over ISDN Multi-mode Router - router - ISDN/DSL - 802.11b/g/n (draft 2.0) - desktop

Cisco 886 VDSL/ADSL over ISDN Multi-mode Router - router - ISDN/DSL - 802.11b/g/n (draft 2.0) - desktop

In Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

CapacityConcurrent IPSec tunnels: 20
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, ANSI T1.413, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0)
Data Link ProtocolEthernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Device TypeRouter - ISDN / DSL modem combo - 4-port switch (integrated)
Digital Signaling ProtocolADSL2+ over ISDN, VDSL2 over ISDN
Dimensions (WxDxH)12.8 in x 10.4 in x 1.7 in
Enclosure TypeDesktop
FeaturesFirewall protection, NAT support, MDI/MDI-X switch, power over Ethernet (PoE), VLAN support, content filtering, DiffServ support, manageable, MAC address filtering, Broadcast Storm Control, IPv6 support, Intrusion Prevention System (IPS), URL filtering, S
Frequency Band2.4 GHz
Network / Transport ProtocolL2TP, RSVP, IPSec, PPPoE, PPPoA, FTP, DHCP, DNS, L2TPv3, RTP
PowerAC 120/230 V ( 50/60 Hz )
Remote Management ProtocolTelnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Routing ProtocolOSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Authentication MethodRADIUS, TACACS+, Extensible Authentication Protocol (EAP)
CapacityConcurrent IPSec tunnels : 20
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, ANSI T1.413, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.11
Connectivity TechnologyWireless, wired
Data Link ProtocolEthernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Depth10.4 in
Device TypeRouter - 4-port switch (integrated)
Digital Signaling ProtocolADSL2+ over ISDN, VDSL2 over ISDN
Enclosure TypeDesktop
Encryption AlgorithmLEAP, DES, Triple DES, SSL, PEAP, TKIP, WPA, WPA2, PKI, 128-bit AES, 192-bit AES, 256-bit AES, WEP
FeaturesFirewall protection, NAT support, MDI/MDI-X switch, power over Ethernet (PoE), VLAN support, content filtering, DiffServ support, manageable, MAC addr
Flash Memory256 MB
Framing FormatANSI T1.413
Frequency Band2.4 GHz
Height1.7 in
Humidity Range Operating10 - 85% (non-condensing)
InterfacesLAN : 2 x 10Base-T/100Base-TX - RJ-45
Max Operating Temperature104
Min Operating Temperature32
Network / Transport ProtocolL2TP, RSVP, IPSec, PPPoE, PPPoA, FTP, DHCP, DNS, L2TPv3, RTP
OS ProvidedCisco IOS Advanced IP services
Power DeviceExternal power adapter - 60 Watt
Protocols & SpecificationsITU G.991.2 (G.shdsl), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.992.1 (G.DMT) Annex A, ITU G.992.1 (G.DMT) Annex B, ITU G.992.5
RAM256 MB
Remote Management ProtocolTelnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Routing ProtocolOSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Status IndicatorsPort status
TypeISDN / DSL modem combo
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Weight5.51 lbs
Width12.8 in
