Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

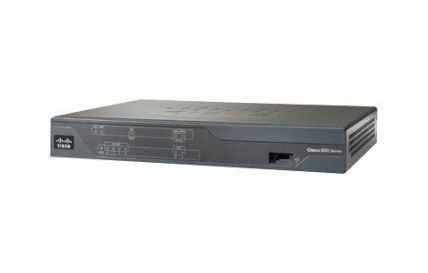

C887VAM-K9-RF
Cisco 887 VDSL/ADSL Annex M over POTS Multi-mode Router - router - DSL modem - desktop
The Cisco 880VA Series Routers support DSL multimode. including very-high- speed DSL 2 (VDSL2) and asymmetric DSL 2+ (ADSL2+). The routers support VDSL2 and ADSL2+ on a single WAN interface, thus providing secure, cost-effective connectivity to small businesses, enterprise small branch offices, and teleworker sites.
You can deploy Cisco 880VA Series Routers at any small-office location. With the Cisco 880VA Series, enterprise IT managers and service providers can take advantage of a solution that they can easily set up at the remote site and centrally manage to reduce ongoing operating costs.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
Capacity | IPSec VPN tunnels: 20 |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q |
Data Link Protocol | Ethernet, Fast Ethernet |
Device Type | Router - DSL modem - 4-port switch (integrated) |
Digital Signaling Protocol | ADSL2, ADSL2+, VDSL2 |
Dimensions (WxDxH) | 12.8 in x 9.8 in x 1.7 in |
Enclosure Type | Desktop |
Features | NAT support, auto-uplink (auto MDI/MDI-X), MAC address filtering, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Servic |
Manufacturer Warranty | 1 year warranty |
Network / Transport Protocol | L2TP, DHCP |
Power | AC 120/230 V ( 50/60 Hz ) |
Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
Routing Protocol | RIP-1, RIP-2, HSRP, VRRP, GRE, policy-based routing (PBR) |
Authentication Method | RADIUS, TACACS+ |
Capacity | IPSec VPN tunnels : 20 |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q , CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, EN 61000-6-1, EN 60555-2, FC |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet |
Depth | 9.8 in |
Device Type | Router - 4-port switch (integrated) |
Digital Signaling Protocol | ADSL2, ADSL2+, VDSL2 |
Enclosure Type | Desktop |
Encryption Algorithm | DES, Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
Features | NAT support, auto-uplink (auto MDI/MDI-X), MAC address filtering, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair |
Flash Memory | 256 MB (installed) / 256 MB (max) |
Framing Format | ANSI T1.413 |
Height | 1.7 in |
Humidity Range Operating | 10 - 85% (non-condensing) |
Interfaces | LAN : 4 x 10Base-T/100Base-TX - RJ-45 |
Max Operating Temperature | 104 |
Min Operating Temperature | 32 |
Network / Transport Protocol | L2TP, DHCP |
OS Provided | Cisco IOS Advanced Security |
Power Device | External power adapter - 60 Watt |
Protocols & Specifications | ITU G.994.1 (G.hs), ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M |
RAM | 256 MB (installed) / 768 MB (max) |
Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
Routing Protocol | RIP-1, RIP-2, HSRP, VRRP, GRE, policy-based routing (PBR) |
Service & Support | Limited warranty - 1 year |
Status Indicators | Port status, power |
Type | DSL modem |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Weight | 5.51 lbs |
Width | 12.8 in |
