Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

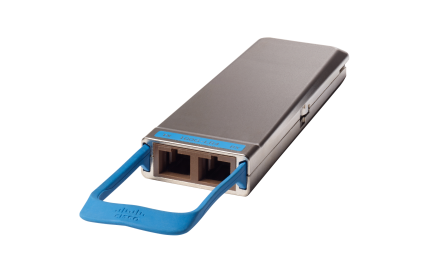

CPAK-100G-LR4-RF
CPAK-100G-LR4 Transceiver module, 10km SMF REMANUFACTURED
Cisco - CPAK transceiver module - 100 Gigabit Ethernet
Out of Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Cabling Type | 100GBase-LR4 |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Device Type | CPAK transceiver module - SC/PC single mode |
| Dimensions (WxDxH) | 1.4 in x 4 in x 0.5 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 90 days warranty |
| Max Transfer Distance | 6.2 miles |
| Optical Wave Length | 1310 nm |
| Cabling Type | 100GBase-LR4 |
| Compliant Standards | RoHS, Laser Class 1, FCC CFR21 Part 1040, IEC 60825-1, GR-326-CORE, GR-20-CORE, GR-1435-CORE |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Depth | 4 in |
| Device Type | CPAK transceiver module |
| Features | Digital Optical Monitoring (DOM) support |
| Form Factor | Plug-in module |
| Height | 0.5 in |
| Interfaces | 1 x Ethernet 100GBase-LR4 - SC/PC single mode female x 2 |
| Max Operating Temperature | 158 |
| Max Transfer Distance | 6.2 miles |
| Min Operating Temperature | 32 |
| Optical Wave Length | 1310 nm |
| Service & Support Details | Limited warranty - 90 days |
| Service & Support | 90 days warranty |
| Weight | 4.48 oz |
| Width | 1.4 in |
