Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
CPAK-10X10G-LR-RF

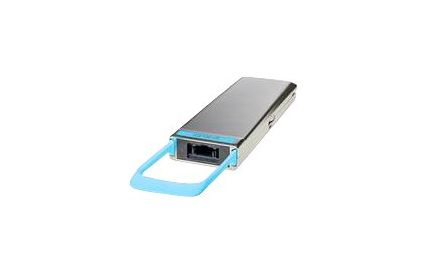

Cisco - CPAK transceiver module - 10 GigE
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The Cisco CPAK-10X10G-LR is a CPAK optical transceiver module that operates in 10 x 10Gbps mode. It is designed for use with ribbon-to-duplex single-mode fiber (SMF) breakout cables to connect to ten 10GBASE-LR optical interfaces. This module supports link lengths of up to 10 km over standard single-mode fiber (G.652). It delivers 100 Gbps links over 24-fiber ribbon cables terminated with MPO/MTP connectors.
Key features include:
10 lanes of 10GBASE-LR, each lane operating at 10 Gbps.
Uses ribbon fiber with MPO-24 connectors.
Supports a maximum reach of 10 km over SMF.
Requires network interface cables with angle-polished contact (APC) face type.
Supports breakout to 10x10G LC SM fibers via MPO-24 APC ribbon fiber breakout.
Typical power consumption is around 5W.
The module is DOM (Digital Optical Monitoring) capable.
It uses DML (Directly Modulated Laser) transmitters and PIN photodiode receivers.
The wavelength range for the 10 lanes is approximately 1260 to 1355 nm.
This module is compatible with Cisco Network Convergence System (NCS) 6000 Series and 4000 Series line cards that support CPAK optics, enabling high-density 100G Ethernet connectivity with breakout to 10x10G interfaces.
| Cabling Type | 10GBase-LR |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Designed For | P/N: 2X100GE-FLEX-40, 2X100GE-FLEX-40= |
| Device Type | CPAK transceiver module - MTP/MPO single mode |
| Dimensions (WxDxH) | 1.4 in x 4 in x 0.5 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 90 days warranty |
| Max Transfer Distance | 6.2 miles |
| Optical Wave Length | 1310 nm |
| Cabling Type | 10GBase-LR |
| Compliant Standards | RoHS, Laser Class 1, FCC CFR21 Part 1040, IEC 60825-1, GR-326-CORE, GR-20-CORE, GR-1435-CORE |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Depth | 4 in |
| Designed For | P/N: 2X100GE-FLEX-40, 2X100GE-FLEX-40= |
| Device Type | CPAK transceiver module |
| Features | Digital Optical Monitoring (DOM) support |
| Form Factor | Plug-in module |
| Height | 0.5 in |
| Interfaces | 1 x Ethernet 10GBase-LR - MTP/MPO single-mode female |
| Max Operating Temperature | 158 |
| Max Transfer Distance | 6.2 miles |
| Min Operating Temperature | 32 |
| Optical Wave Length | 1310 nm |
| Service & Support Details | Limited warranty - 90 days |
| Service & Support | 90 days warranty |
| Weight | 4.48 oz |
| Width | 1.4 in |
