Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
DS-C9250I-K9-RF

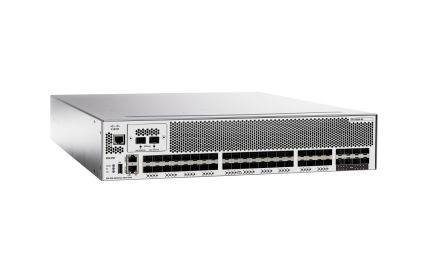

Cisco MDS 9250i Multiservice Fabric Switch - switch - 30 ports - rack-mountable
Cisco MDS 9250i Multiservice Fabric Switch - switch - 30 ports - desktop, rack-mountable
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | IEEE 802.3, IEEE 802.1Q |
| Device Type | Switch - 30 ports |
| Dimensions (WxDxH) | 17.2 in x 21.4 in x 3.8 in |
| Enclosure Type | Desktop, rack-mountable 2U |
| Features | ARP support, ISL support, Syslog support, IPv6 support, Access Control List (ACL) support, RADIUS support, Remote Switch Port Analyzer (RSPAN), Registered State Change Notification (RSCN) support |
| Manufacturer Warranty | 1 year warranty |
| Ports | 20 x 16Gb Fibre Channel SFP+ + 8 x 10 Gb FCoE + 2 x 10 Gb FCIP |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Yes |
| Remote Management Protocol | RMON, SNMP 3, SSH-2, CLI |
| Routing Protocol | VRRP |
| Subtype | Fibre Channel |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), DH-CHAP |
| Compliant Standards | EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55022 Class A, UL 60950, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, FCC Part 15, ICES-00 |
| Depth | 21.4 in |
| Device Type | Switch - 30 ports |
| Enclosure Type | Desktop, rack-mountable - 2U |
| Encryption Algorithm | AES, IKE, IKEv2 |
| Features | Front-to-rear air?ow |
| Fibre Channel | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP |
| Height | 3.8 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Installed Qty | 1 (installed) / 3 (max) |
| Interfaces | 1 x 1000Base-T - RJ-45 |
| Max Operating Temperature | 104 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -40 |
| Ports | 20 x 16Gb Fibre Channel SFP+ + 8 x 10 Gb FCoE + 2 x 10 Gb FCIP |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 300 Watt |
| Power Redundancy | Yes |
| Remote Management Protocol | RMON, SNMP 3, SSH-2, CLI |
| Routing Protocol | VRRP |
| Service & Support Details | Limited warranty - 1 year |
| Service & Support | 1 year warranty |
| Subtype | Fibre Channel |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Width | 17.2 in |
