DS-SFP-FC16G-SW-RF
16 Gbps Fibre Channel SW SFP+, LC REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

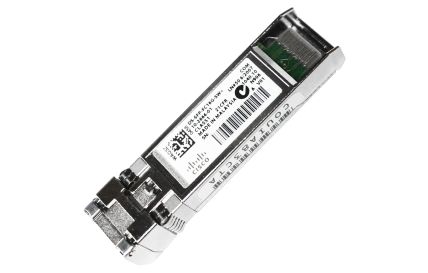

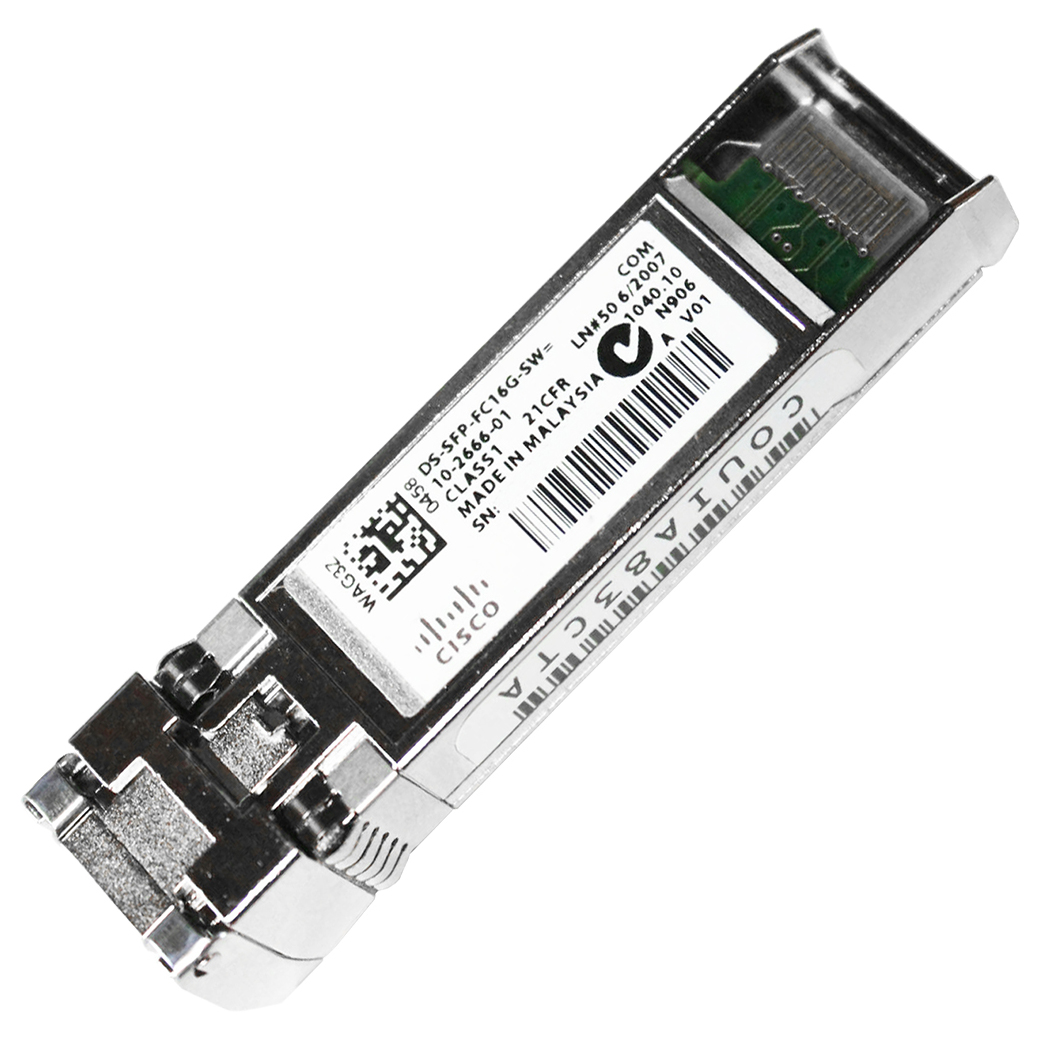

The DS-SFP-FC16G-SW is a Cisco 16 Gbps Fibre Channel Short Wave (SW) SFP+ transceiver with an LC connector. It supports multimode fiber (MMF) with a wavelength of 850 nm and operates at speeds up to 16 Gbps. The transceiver supports various multimode fiber types including OM1, OM2, OM3, and OM4/OM5 with different maximum cable distances:
OM1 (62.5 microns): up to 15 meters
OM2 (50 microns): up to 35 meters
OM3 (50 microns): up to 100 meters
OM4/OM5 (50 microns): up to 125 meters
The device uses a short wave laser suitable for short distance links and is compliant with Fibre Channel standards for 16 Gbps operation. It has an operating temperature range of 0°C to 70°C and storage temperature range of -40°C to 85°C. The DS-SFP-FC16G-SW is hot-swappable and supports online diagnostics.
In practical use, for example, with 50/125um OM3 fiber, it supports link lengths up to 100 meters. It is commonly used in Cisco MDS 9000 Series switches and directors for Fibre Channel storage networking.
Key features:
16 Gbps Fibre Channel speed
Short wave laser, multimode fiber
LC connector
Maximum distance up to 125 meters on OM4/OM5 fiber
Operating temperature: 0°C to 70°C
Hot-swappable SFP+ module
This transceiver is listed as a compatible module for Cisco MDS 9700 and 9000 series Fibre Channel switching modules.
| Cabling Type | Fiber optic |
| Data Link Protocol | 16Gb Fibre Channel (Short Wave) |
| Data Transfer Rate | 16 Gbps |
| Designed For | P/N: DS-X9448-768K9= |
| Device Type | SFP+ transceiver module - LC multi-mode |
| Dimensions (WxDxH) | 0.6 in x 2.2 in x 0.4 in |
| Form Factor | Plug-in module |
| Max Transfer Distance | 1310 ft |
| Optical Wave Length | 850 nm |
| Cabling Type | Fiber optic |
| Compatible Slots | 1 x SFP+ |
| Connectivity Technology | Wired |
| Data Link Protocol | 16Gb Fibre Channel (Short Wave) |
| Data Transfer Rate | 16 Gbps |
| Depth | 2.2 in |
| Designed For | P/N: DS-X9448-768K9= |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Height | 0.4 in |
| Interfaces | 1 x 16Gb Fibre Channel ( short wave ) - LC multi-mode x 2 |
| Max Operating Temperature | 104 |
| Max Transfer Distance | 1310 ft |
| Min Operating Temperature | 32 |
| Optical Wave Length | 850 nm |
| Width | 0.6 in |
