GLC-LX-SM-RGD-RF

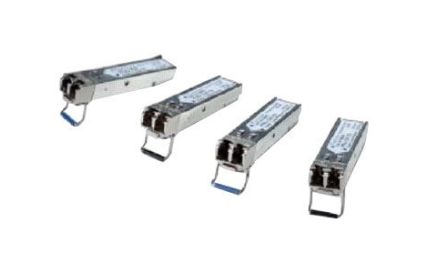

Cisco Rugged SFP - SFP (mini-GBIC) transceiver module - GigE
The industry-standard Cisco Small Form-Factor Pluggable (SFP) transceiver modules are hot-swappable input/output (I/O) devices that plug into 100BASE, 1000BASE and 10GBASE ports (for SFP+), which connect the module port with the fiber-optic or copper network.
The 1000BASE-LX/LH SFP transceiver module for SMF, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard singlemode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Cabling Type | 1000Base-LX, 1000Base-LH |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Designed For | Cisco 3270, 3270 Rugged Integrated Services Router Card |
| Device Type | SFP (mini-GBIC) transceiver module - LC single mode |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 1 year warranty |
| Optical Wave Length | 1310 nm |
| Cabling Type | 1000Base-LX, 1000Base-LH |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Designed For | Cisco 3270, 3270 Rugged Integrated Services Router Card |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single mode x 2 |
| Max Operating Temperature | 185 |
| Min Operating Temperature | -40 |
| Optical Wave Length | 1310 nm |
| Service & Support | Limited warranty - 1 year |
