GLC-SX-MMD-RF
1000BASE-SX SFP xcver module, MMF, 850nm, DOM REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

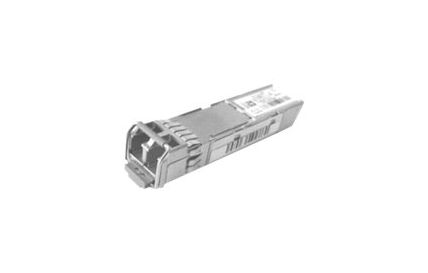

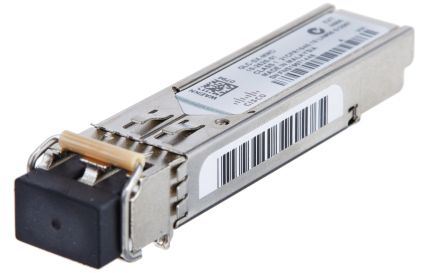

The Cisco GLC-SX-MMD is a 1000BASE-SX small form-factor pluggable (SFP) transceiver module designed for multimode fiber (MMF) with an 850 nm wavelength. It supports a reach of up to 1000 meters depending on the fiber type and core size, and it includes Digital Optical Monitoring (DOM) capabilities. The module is compatible with various MMF types such as OM1, OM2, OM3, OM4, and OM5, and supports different core sizes (50 and 62.5 microns) with bandwidths ranging from 160 to 2000 MHz*km. Typical cable distances vary from 220 meters to 1000 meters depending on the fiber used.
Key Features:
1000BASE-SX SFP transceiver for MMF
850 nm wavelength
Reach up to 1000 meters depending on fiber type
Supports DOM for monitoring
Compatible with multiple MMF types and core sizes
| Cabling Type | 1000Base-SX |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Designed For | Cisco 3825, 3825 V3PN, 3845, 3845 V3PN, 7301, 7301 VAM2+; Catalyst 2950, 2950ST, 2960, 2960G, 2960S, 2970G, 3560, 3560E, 3560G, 3560V2, 3560X, 3750, 3750G, 4500, 4948; Catalyst Compact 2960; Catalyst Express 500, 500G; CSS 11503, 11506; ME 3400, 4924, 652 |
| Device Type | SFP (mini-GBIC) transceiver module - LC/PC multi-mode |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 1 year warranty |
| Max Transfer Distance | 0.6 miles |
| Optical Wave Length | 850 nm |
| Cabling Type | 1000Base-SX |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Compliant Standards | Laser Class 1, IEC 60825-1 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Depth | 2.2 in |
| Designed For | Cisco 3825, 3825 Branch Office in a Box Bundle, 3825 HVSEC Bundle, 3825 ISR IP Video Surveillance Bundle, 3825 Retail Bundle, 3825 Secure WAN Optimiza |
| Device Type | SFP (mini-GBIC) transceiver module |
| Features | Hot swap module replacement, Digital Optical Monitoring (DOM) support |
| Form Factor | Plug-in module |
| Height | 0.3 in |
| Interfaces | 1 x Ethernet 1000Base-SX - LC/PC multi-mode x 2 |
| Max Operating Temperature | 185 |
| Max Transfer Distance | 0.6 miles |
| Min Operating Temperature | 23 |
| Optical Wave Length | 850 nm |
| Service & Support | Limited warranty - 1 year |
| Weight | 2.65 oz |
| Width | 0.5 in |
