IE-2000-8TC-G-E-RF
IE 8 10/100,2 T/SFP, Base with 1588 REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

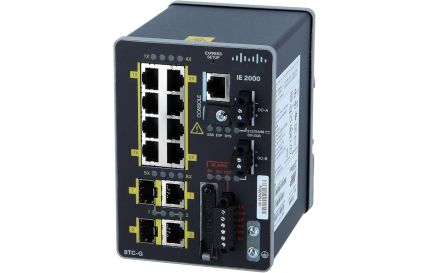

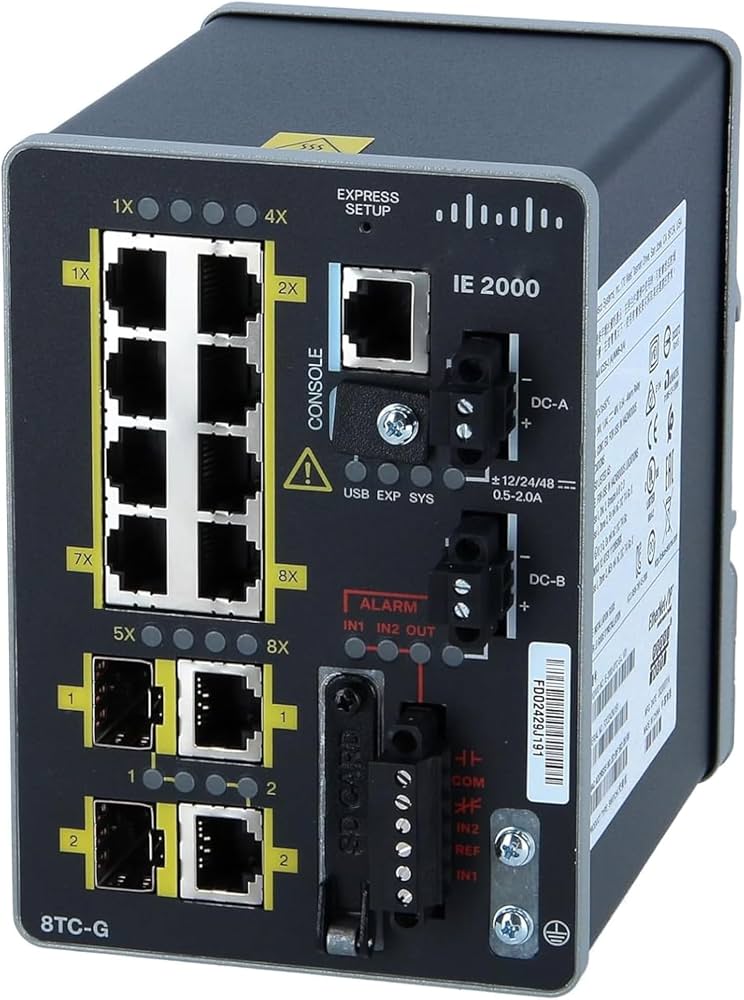

The Cisco IE-2000-8TC-G-E is an Industrial Ethernet 2000 Series switch designed for ruggedized industrial environments. Key features and specifications include:
Ports: 8 Fast Ethernet (10/100BASE-T) downlink ports and 2 Gigabit Ethernet dual-purpose uplink ports.
Software License: LAN Base.
Support for IEEE 1588: Yes, for synchronizing clocks.
Network Address Translation (NAT): Can be enabled by license upgrade.
Power over Ethernet (PoE): Not specified for this model.
Form Factor: Compact and ruggedized, suitable for industrial applications.
Additional Features: Supports Cisco Resilient Ethernet Protocol (REP), dual-input DC power supply, alarm relays, DIN rail mount, swappable SD flash card, and mini-USB connector.
Use Cases: Suitable for industries such as automotive, oil and gas, mining, transportation, and energy.
| Bundled Services | 1 year warranty |
| Capacity | Virtual interfaces (VLANs): 255 |
| Compliant Standards | IEEE 802.1x |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable |
| Features | DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Port Security, Remote Switch Port Analyzer (RSPAN) |
| MAC Address Table Size | 8K entries |
| Manufacturer Warranty | 1 year warranty |
| Performance | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Ports | 8 x 10/100 + 2 x combo Gigabit SFP |
| Remote Management Protocol | SNMP 3, HTTPS, SSH |
| Routing Protocol | IGMP, static IPv4 routing |
| Subtype | Gigabit Ethernet |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | Virtual interfaces (VLANs) : 255 |
| Compliant Standards | C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, VCCI Class A ITE, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 6100 |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Features | DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Proto |
| Flash Memory | 64 MB |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Interfaces | 8 x 100Base-TX - RJ-45 |
| MAC Address Table Size | 8K entries |
| Max Storage Temperature | 185 |
| Min Storage Temperature | -40 |
| MTBF | 374,052 hours |
| Performance | Forwarding performance (64-byte packet size) : 6.5 Mpps |
| Ports | 8 x 10/100 + 2 x combo Gigabit SFP |
| Rack Mounting Kit | Optional |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 3, HTTPS, SSH |
| Routing Protocol | IGMP, static IPv4 routing |
| Service & Support Details | Limited warranty - 1 year |
| Service & Support | 1 year warranty |
| Software Included | Cisco IOS LAN Base |
| Subtype | Gigabit Ethernet |
