IE-3000-8TC-E-RF

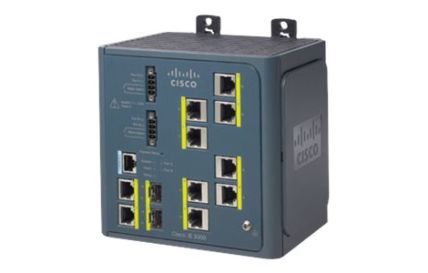

Cisco Industrial Ethernet 3000 Series - switch - 8 ports - managed
The Cisco Industrial Ethernet 3000 (IE 3000) Series Switches are a new family of switches that provide a rugged, easy-to-use, secure switching infrastructure for harsh environments. The Cisco IE 3000 family features industrial design and compliance, tools for ease of deployment, management, and replacement; and network security based on open standards. The Cisco IE 3000 is an ideal product for industrial Ethernet applications, including factory automation, intelligent transportation systems (ITSs), substations, and other deployments in harsh environments.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1x |
| Device Type | Switch - 8 ports - L3 - managed |
| Dimensions (WxDxH) | 6 in x 4.4 in x 5.8 in |
| Enclosure Type | DIN rail mountable |
| Features | Layer 3 switching, VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS |
| MAC Address Table Size | 8K entries |
| Manufacturer Warranty | 1 year warranty |
| Ports | 8 x 10/100 + 2 x combo Gigabit SFP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
| Routing Protocol | OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, OSPF for IPv6, policy-based routing (PBR), RIPng |
| Subtype | Fast Ethernet |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55 |
| Depth | 4.4 in |
| Device Type | Switch - 8 ports - L3 - managed |
| Enclosure Type | DIN rail mountable |
| Features | Layer 3 switching, VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanni |
| Flash Memory | 64 MB flash |
| Height | 5.8 in |
| Humidity Range Operating | 10 - 95% |
| Interfaces | 8 x 100Base-TX - RJ-45 |
| MAC Address Table Size | 8K entries |
| Max Operating Temperature | 167 |
| Max Storage Temperature | 185 |
| Min Operating Temperature | -40 |
| Min Storage Temperature | -13 |
| MTBF | 329,451 hours |
| Ports | 8 x 10/100 + 2 x combo Gigabit SFP |
| Rack Mounting Kit | Optional |
| RAM | 128 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
| Routing Protocol | OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, OSPF for IPv6, policy-based routing (PBR), RIPng |
| Service & Support Details | Limited warranty - 1 year |
| Service & Support | 1 year warranty |
| Software Included | Cisco IOS IP Services |
| Status Indicators | Port status, system |
| Subtype | Fast Ethernet |
| Weight | 4.41 lbs |
| Width | 6 in |
