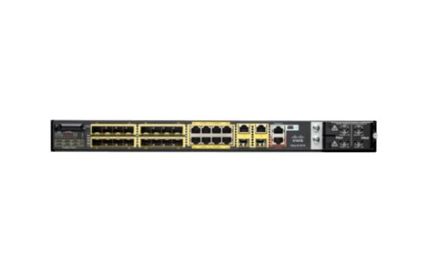

IE-3010-16S-8PC-RF
RackM SW16 100 SFP,8 10/100PoE,2GEuplink.NoPS REMANUFACTURED
The Cisco Industrial Ethernet 3010 Series is a family of fully managed, Layer 2 rack-mountable fixed configuration switches with Small Form-Factor Pluggable (SFP) fiber aggregation and Power over Ethernet (PoE) that bring Cisco's leadership in switching to Industrial Ethernet applications with innovative features, robust security, and superior ease of use.
The Cisco IE 3010 Series is an ideal product for Industrial Ethernet applications, including factory automation, process automation and control, intelligent transportation systems (ITSs), rail transport, and mass transit.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bundled Services | 1 year warranty |
| Capacity | Active VLANs: 255 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ag, IEEE 802.1ab (LLDP) |
| Device Type | Switch - managed |
| Dimensions (WxDxH) | 17.5 in x 14 in x 1.8 in |
| Enclosure Type | Rack-mountable 1U |
| Features | DHCP support, VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol ( |
| Jumbo Frame Support | 9018 bytes |
| MAC Address Table Size | 12K entries |
| Manufacturer Warranty | 1 year warranty |
| Performance | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Ports | 16 x 100 Mbit SFP + 8 x 10/100/1000 + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Power Redundancy | Optional |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2 |
| Subtype | Gigabit Ethernet |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | Active VLANs : 255 |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, NOM, VCCI Class A |
| Depth | 14 in |
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable - 1U |
| Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
| Features | DHCP support, VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tr |
| Flash Memory | 1 GB |
| Height | 1.8 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Installed Qty | 0 (installed) / 2 (max) |
| Interfaces | 8 x 1000Base-T - RJ-45 - PoE |
| Jumbo Frame Support | 9018 bytes |
| MAC Address Table Size | 12K entries |
| Max Operating Temperature | 140 |
| Max Storage Temperature | 185 |
| Min Operating Temperature | -40 |
| Min Storage Temperature | -40 |
| MTBF | 230,112 hours |
| Performance | Forwarding performance (64-byte packet size) : 6.5 Mpps |
| Ports | 16 x 100 Mbit SFP + 8 x 10/100/1000 + 2 x combo Gigabit SFP |
| Power Device | Internal power supply - hot-plug |
| Power Over Ethernet (PoE) | PoE |
| Power Redundancy | Optional |
| Rack Mounting Kit | Included |
| RAM | 256 MB - DDR2 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2 |
| Service & Support Details | Limited warranty - 1 year |
| Service & Support | 1 year warranty |
| Software Included | Cisco IOS LAN Base |
| Subtype | Gigabit Ethernet |
| Weight | 9.92 lbs |
| Width | 17.5 in |
