Notes:

Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

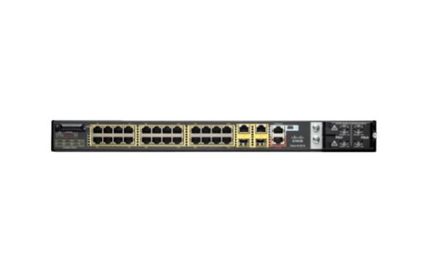

IE-3010-24TC-RF

Cisco Industrial Ethernet 3010 Series - switch - 24 ports - managed - rack-mountable

The Cisco Industrial Ethernet 3010 Series is a family of fully managed, Layer 2 rack-mountable fixed configuration switches with Small Form-Factor Pluggable (SFP) fiber aggregation and Power over Ethernet (PoE) that bring Cisco's leadership in switching to Industrial Ethernet applications with innovative features, robust security, and superior ease of use.
The Cisco IE 3010 Series is an ideal product for Industrial Ethernet applications, including factory automation, process automation and control, intelligent transportation systems (ITSs), rail transport, and mass transit.

Out of Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

Bundled Services5 years warranty
CapacityActive VLANs: 255
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP)
Device TypeSwitch - 24 ports - managed
Dimensions (WxDxH)17.5 in x 14 in x 1.8 in
Enclosure TypeRack-mountable 1U
FeaturesLayer 2 switching, DHCP support, VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spann
Jumbo Frame Support9018 bytes
MAC Address Table Size2K entries
Manufacturer Warranty5 years warranty
PerformanceForwarding performance (64-byte packet size): 6.5 Mpps
Ports24 x 10/100 + 2 x combo Gigabit SFP
Power RedundancyOptional
Remote Management ProtocolSNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2
SubtypeFast Ethernet
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2)
CapacityActive VLANs : 255
Compliant StandardsBSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, NOM, VCCI Class A
Depth14 in
Device TypeSwitch - 24 ports - managed
Enclosure TypeRack-mountable - 1U
Expansion Slots1 (total) / 0 (free) x SD Memory Card
FeaturesLayer 2 switching, DHCP support, VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm C
Flash Memory1 GB
Height1.8 in
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Installed Qty0 (installed) / 2 (max)
Interfaces24 x 100Base-TX - RJ-45
Jumbo Frame Support9018 bytes
MAC Address Table Size2K entries
Max Operating Temperature140
Max Storage Temperature185
Min Operating Temperature-40
Min Storage Temperature-40
MTBF207,731 hours
PerformanceForwarding performance (64-byte packet size) : 6.5 Mpps
Ports24 x 10/100 + 2 x combo Gigabit SFP
Power DeviceInternal power supply - hot-plug
Power RedundancyOptional
Rack Mounting KitIncluded
RAM256 MB - DDR2 SDRAM
Remote Management ProtocolSNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2
Service & Support DetailsLimited warranty - advance parts replacement - 5 years - response time: 10 days
Service & Support5 years warranty
Software IncludedCisco IOS LAN Base
SubtypeFast Ethernet
Weight9.04 lbs
Width17.5 in
