Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
IE-4000-8T4G-E-RF

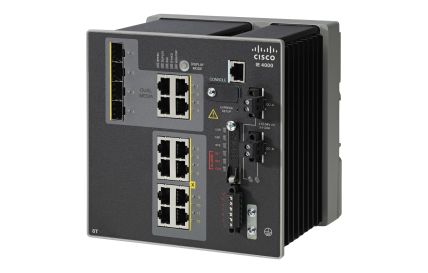

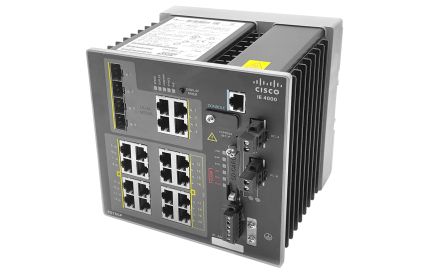

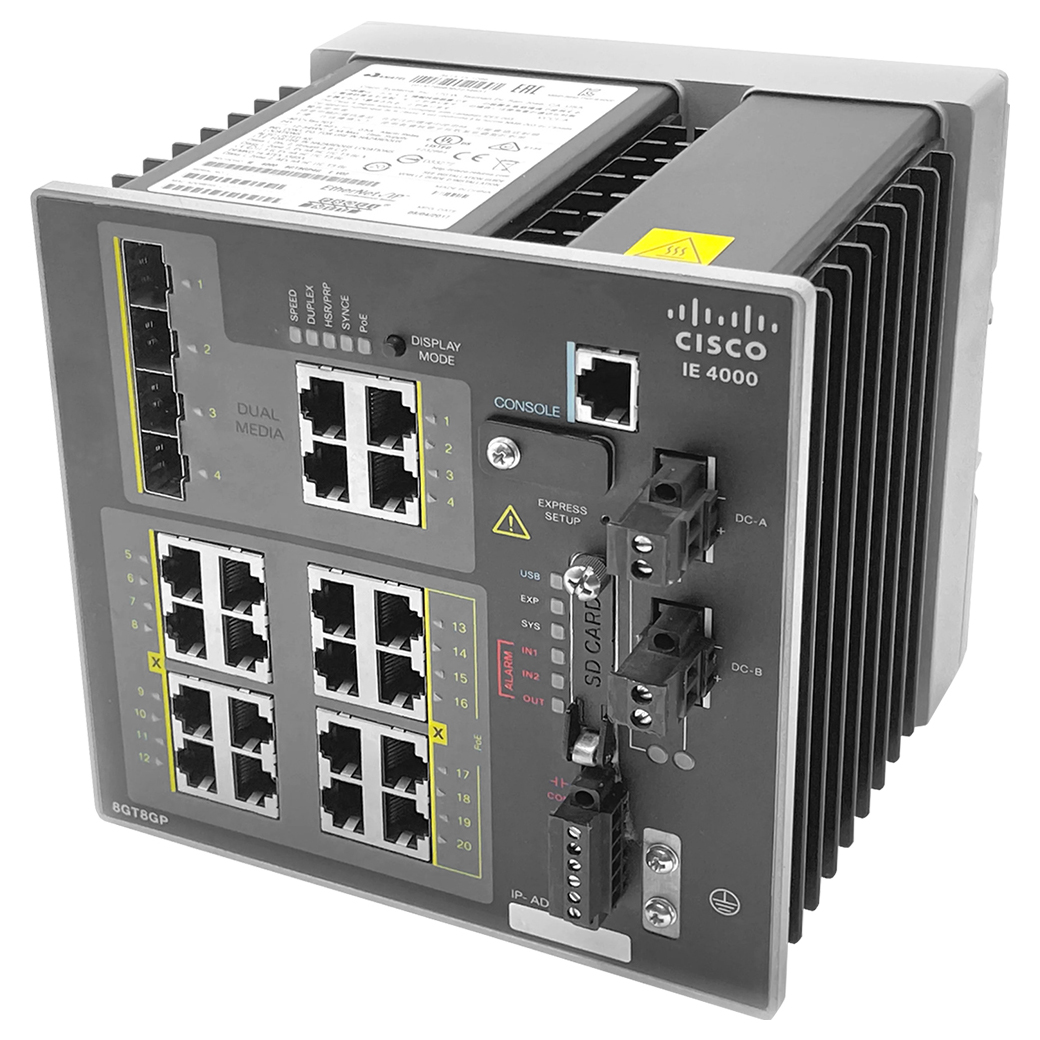

Cisco Industrial Ethernet 4000 Series - switch - 12 ports - managed
Cisco Industrial Ethernet 4000 Series - switch - 12 ports - managed - DIN rail mountable
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bundled Services | 5 years warranty |
| Capacity | Virtual interfaces (VLANs): 1000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 1613 |
| Device Type | Switch - 12 ports - managed |
| Dimensions (WxDxH) | 6.1 in x 5.1 in x 6.1 in |
| Enclosure Type | DIN rail mountable |
| Features | NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid |
| MAC Address Table Size | 16K entries |
| Manufacturer Warranty | 5 years warranty |
| Ports | 8 x 10/100 + 4 x combo Gigabit SFP |
| Power | DC 9.6 - 60 V 3.7 A |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI |
| Routing Protocol | Static IPv4 routing |
| Subtype | Fast Ethernet |
| Authentication Method | RADIUS, TACACS+ |
| Capacity | Virtual interfaces (VLANs) : 1000 |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6 |
| Depth | 5.1 in |
| Device Type | Switch - 12 ports - managed |
| Electric Current Required | 3.7 A |
| Enclosure Type | DIN rail mountable |
| Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
| Features | NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, I |
| Flash Memory | 128 MB |
| Height | 6.1 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Included Accessories | 1 GB SD card |
| Interfaces | 8 x 100Base-TX - RJ-45 |
| MAC Address Table Size | 16K entries |
| Max Operating Temperature | 167 |
| Max Storage Temperature | 185 |
| Min Operating Temperature | -40 |
| Min Storage Temperature | -40 |
| MTBF | 591,070 hours |
| Ports | 8 x 10/100 + 4 x combo Gigabit SFP |
| Power Consumption Operational | 35 Watt |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI |
| Routing Protocol | Static IPv4 routing |
| Service & Support Details | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
| Service & Support | 5 years warranty |
| Software Included | Cisco IOS LAN Base |
| Subtype | Fast Ethernet |
| TAA Compliant | Yes |
| Voltage Required | DC 9.6 - 60 V |
| Weight | 6.35 lbs |
| Width | 6.1 in |
