Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
MGBLX1-RF

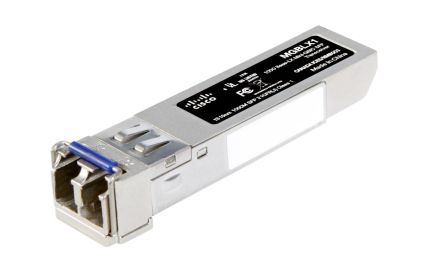

Cisco Small Business MGBLX1 - SFP (mini-GBIC) transceiver module - GigE
Cisco MGE Small Form-Factor Pluggable (SFP) is easy-to-install module that provides a simple way to add fiber connectivity or to add an extra Gigabit Ethernet port to your Cisco Small Business Series switches.
The Cisco MGE transceiver provides fast and reliable connectivity between switches that are located on different floors, in separate buildings, or on a small campus network needing connectivity between sites. The transceiver can support both Fast and Gigabit Ethernet applications.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Cabling Type | 1000Base-LX |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Device Type | SFP (mini-GBIC) transceiver module - LC single mode |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.4 in |
| Form Factor | Plug-in module |
| Max Transfer Distance | 6.2 miles |
| Optical Wave Length | 1310 nm |
| Cabling Type | 1000Base-LX |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Compliant Standards | VCCI Class B ITE, CISPR 22 Class B, EN 60950, EN55022 Class B, FCC Part 15 B, EN 60825, IEC 60825-1, FDA |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Depth | 2.2 in |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Height | 0.4 in |
| Humidity Range Operating | 10 - 85% |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single mode x 2 |
| Max Operating Temperature | 158 |
| Max Transfer Distance | 6.2 miles |
| Min Operating Temperature | 32 |
| Optical Wave Length | 1310 nm |
| Weight | 0.63 oz |
| Width | 0.5 in |
