N2K-C2232PP10GE-RF

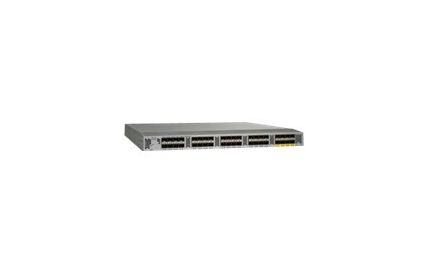

Cisco Nexus 2232PP 10GE Fabric Extender - expansion module - 32 ports
The Cisco Nexus 2232PP 10GE fabric extender expands the Cisco Nexus 2000 series fabric extenders product line to provide a unified server access platform across a range of 100 Megabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, unified fabric, rack, and blade server environments.
The Cisco Nexus 2000 series fabric extenders behave as remote I/O modules for a parent Cisco Nexus 5000 series switch. The fabric extender is essentially an extension of the parent Cisco Nexus switch fabric, with the fabric extender and the parent Cisco Nexus switch together forming a virtual modular system.
The Cisco Nexus 2000 series forwards all traffic to the parent Cisco Nexus 5000 series switch over 10 Gigabit Ethernet uplinks. Passing all traffic to the parent switch allows traffic to be shaped according to policies established on the parent Cisco Nexus 5000 series switch with a single point of management.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Auxiliary Ports | 8 x SFP+ (uplink) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae |
| Data Link Protocol | 10 GigE, FCoE |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 17.3 in x 17.7 in x 1.7 in |
| Form Factor | Rack-mountable |
| Manufacturer Warranty | 1 year warranty |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Ports Qty | 32 ports |
| Power | AC 120/230 V ( 50/60 Hz ) |
