Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
N2K-C2232T8F-E-RF

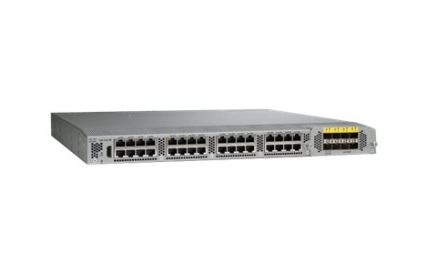

Cisco Nexus 2232TM-E 10GE Fabric Extender - expansion module - 32 ports
Cisco Nexus 2232TM-E 10GE Fabric Extender - expansion module - 32 ports
Out of Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Auxiliary Ports | 8 x SFP+ (uplink) |
| Bundled with | 8 x Cisco Nexus 2000 Series Fabric Extender Transceiver (FET-10G) |
| Cabling Type | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3an |
| Data Link Protocol | GigE, 10 GigE |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 17.3 in x 17.7 in x 1.7 in |
| Form Factor | Rack-mountable |
| Manufacturer Warranty | 1 year warranty |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Ports Qty | 32 ports |
| Auxiliary Ports | 8 x SFP+ (uplink) |
| Bundled with | 8 x Cisco Nexus 2000 Series Fabric Extender Transceiver (FET-10G) |
| Cabling Type | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, A |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE, 10 GigE |
| Depth | 17.7 in |
| Device Type | Expansion module - 32 ports |
| Expansion Slots | 8 (total) / 0 (free) x SFP+ |
| Features | Flow control, full duplex capability, uplink, hot swap module replacement, auto-negotiation, VLAN support, IGMP snooping, Syslog support, Weighted Rou |
| Form Factor | Rack-mountable |
| Height | 1.7 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Interfaces | 32 x 10Gb Ethernet - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Power Device | Power supply - hot-plug / redundant - plug-in module |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3 |
| Service & Support Details | Limited warranty - replacement - 1 year |
| Service & Support | 1 year warranty |
| Status Indicators | Port status, power, system |
| Weight | 18.52 lbs |
| Width | 17.3 in |
