Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
N2K-C2248TP-E-RF

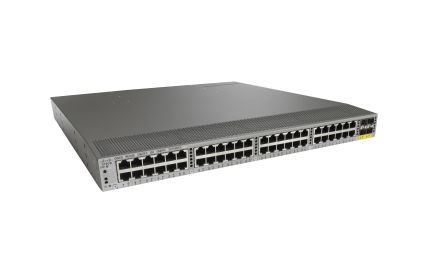

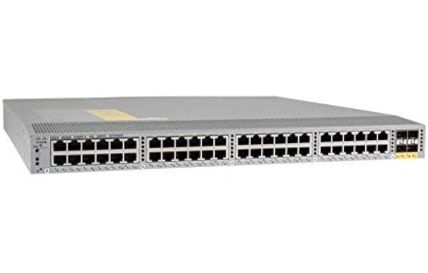

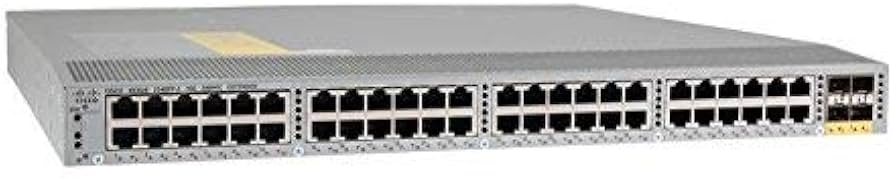

Cisco Nexus 2248TP-E Fabric Extender - expansion module - Gigabit Ethernet x 48 + 10 Gigabit SFP+ x 4
Cisco Nexus 2248TP-E Fabric Extender - expansion module
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Auxiliary Ports | 4 x SFP+ (uplink) |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T |
| Capacity | ACL entries: 256 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an |
| Data Link Protocol | 100Mb LAN, GigE |
| Designed For | Nexus 5010, 5020, 5020,, 5548, 5548P, 5548UP, 5596T, 5596UP, 6001, 6001P, 6001T, 6004, 6004 24, 6004EF, 7004, 7009, 7010, 7700, 7700 18, 7700 18-Slot, 7700 6, 7700 6-Slot, 7706, 7710 |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 17.3 in x 17.7 in x 1.7 in |
| Form Factor | Rack-mountable |
| Manufacturer Warranty | 1 year warranty |
| Performance | Forwarding performance (full duplex): 80 Gbps |
| Ports | Gigabit Ethernet x 48 + 10 Gigabit SFP+ x 4 |
| Auxiliary Ports | 4 x SFP+ (uplink) |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T |
| Capacity | ACL entries : 256 |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, GigE |
| Depth | 17.7 in |
| Designed For | Cisco Nexus 5010, 5010 OSM version, 5010 Solutions Kit, 8G FC Unified Fabric, 5020, 5020 Solutions Kit, 8G FC Unified Fabric, 5020, IBM OSM version, 5 |
| Device Type | Expansion module |
| Expansion Slots | 4 (total) / 4 (free) x SFP+ |
| Features | Flow control, full duplex capability, auto-negotiation, VLAN support, Cisco Gigabit EtherChannel , Syslog support, Weighted Round Robin (WRR) queuing, |
| Form Factor | Rack-mountable |
| Height | 1.7 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Interfaces | 48 x 1000Base-T - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Performance | Forwarding performance (full duplex) : 80 Gbps |
| Ports | Gigabit Ethernet x 48 + 10 Gigabit SFP+ x 4 |
| Power Device | Power supply - hot-plug / redundant - plug-in module |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, CLI |
| Service & Support | Limited warranty - advance parts replacement - 1 year |
| Status Indicators | Port status, power, system, module locator, fan |
| Weight | 17.64 lbs |
| Width | 17.3 in |
