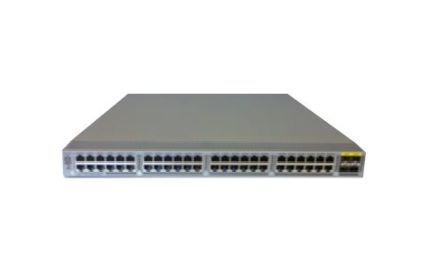

N3K-C3048TP-1GE-RF

Nexus 3048TP-1GE 1RU 48GE+4 10GEno p/s,no fan REMANUFACTURED

The Cisco Nexus 3048 Switch is a line-rate Gigabit Ethernet top-of-rack (ToR) switch and is part of the Cisco Nexus 3000 Series Switches portfolio. The Cisco Nexus 3048, with its compact one-rack-unit (1RU) form factor and integrated Layer 2 and 3 switching, complements the existing Cisco Nexus family of switches. This switch runs the industry-leading Cisco NX-OS Software operating system, providing customers with robust features and functions that are deployed in thousands of data centers worldwide. The Cisco Nexus 3048 is ideal for Big-Data customers that require a Gigabit Ethernet ToR switch with local switching that connects transparently to upstream Cisco Nexus switches, providing an end-to-end Cisco Nexus fabric in their data centers.

Out of Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

Bundled Services1 year warranty
CapacityVirtual interfaces (VLANs): 4096
Compliant StandardsIEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Device TypeSwitch - 48 ports - managed
Dimensions (WxDxH)17.3 in x 19.9 in x 1.7 in
Enclosure TypeRack-mountable 1U
FeaturesVLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Qual
Jumbo Frame Support9216 bytes
MAC Address Table Size128K entries
Manufacturer Warranty1 year warranty
PerformanceSwitching capacity: 176 Gbps
Ports48 x 10/100/1000 + 4 x 10 Gigabit SFP+
PowerAC 120/230 V ( 50/60 Hz )
Power RedundancyOptional
Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing ProtocolBGP, IGMPv2, IGMPv3
Subtype10 Gigabit Ethernet
Authentication MethodRADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
CapacityVirtual interfaces (VLANs) : 4096
Compliant StandardsCISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 C
Depth19.9 in
Device TypeSwitch - 48 ports - managed
Enclosure TypeRack-mountable - 1U
Encryption AlgorithmAES
FeaturesVLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Rapid S
Flash Memory2 GB
Height1.7 in
Humidity Range Operating10 - 85% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Installed Qty0 (installed) / 2 (max)
Interfaces1 x serial (RS-232) - management
Jumbo Frame Support9216 bytes
MAC Address Table Size128K entries
Max Operating Temperature104
Max Storage Temperature158
Min Operating Temperature32
Min Storage Temperature-40
PerformanceSwitching capacity : 176 Gbps
Ports48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Power DeviceInternal power supply - hot-plug
Power RedundancyOptional
Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing ProtocolBGP, IGMPv2, IGMPv3
Service & Support DetailsLimited warranty - replacement - 1 year - response time: 10 days
Service & Support1 year warranty
Subtype10 Gigabit Ethernet
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Weight20.5 lbs
Width17.3 in
