Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
N5K-C5672UP-RF
Nexus5672UP1RU32x10G SFP16pxUPSFP+6x40G QSFP+ REMANUFACTURED

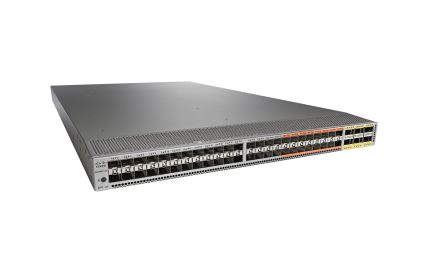

Cisco Nexus 5672UP - switch - 48 ports - managed - rack-mountable
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bundled Services | 1 year warranty |
| Capacity | ARP entries: 256000 |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, FIP v1 |
| Device Type | Switch - 48 ports - L3 - managed |
| Dimensions (WxDxH) | 17.3 in x 30 in x 1.7 in |
| Enclosure Type | Rack-mountable 1U |
| Features | Routing, layer 3 switching, DHCP support, VPN support, ARP support, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Virtual Route Redundancy Protocol |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 256K entries |
| Manufacturer Warranty | 1 year warranty |
| Performance | Forwarding performance: 1.44 Tbps |
| Ports | 32 x 1 Gigabit / 10 Gigabit SFP+ + 16 x combo 1 Gigabit / 10Gb Ethernet / 2/4/8Gb Fibre Channel / FCoE SFP+ + 6 x 40Gb Ethernet / FCoE QSFP+ (breakout compatible) |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Yes |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol | IS-IS, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), BGP for IPv6 |
| Subtype | 10 Gigabit Ethernet |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, MS-CHAP |
| Capacity | ARP entries : 256000 |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, AES, FCC CFR47 Part 15, UL 60 |
| Depth | 30 in |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Routing, layer 3 switching, DHCP support, VPN support, ARP support, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm |
| Height | 1.7 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Installed Qty | 2 (installed) / 2 (max) |
| Interfaces | 48 x - SFP+ |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 256K entries |
| Max Operating Temperature | 104 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -40 |
| Performance | Forwarding performance : 1.44 Tbps |
| Ports | 32 x 1 Gigabit / 10 Gigabit SFP+ + 16 x combo 1 Gigabit / 10Gb Ethernet / 2/4/8Gb Fibre Channel / FCoE SFP+ + 6 x 40Gb Ethernet / FCoE QSFP+ (breakout |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 1100 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol | IS-IS, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, static IPv6 routing, ECMP, policy-base |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Software Included | Cisco NX-OS |
| Status Indicators | Port status |
| Subtype | 10 Gigabit Ethernet |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Weight | 31.97 lbs |
| Width | 17.3 in |
