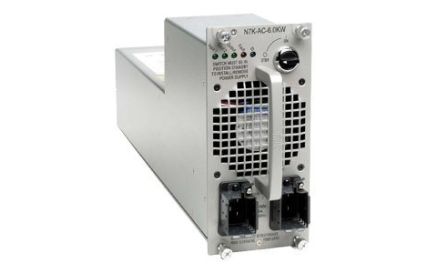

N7K-AC-6.0KW-RF
Cisco - power supply - hot-plug / redundant - 6000 Watt
The Cisco Nexus 7000 Series Power Supply Modules deliver fault tolerance, high efficiency, load sharing, and hot-swappable features to the Cisco Nexus 7000 Series. Each Cisco Nexus 7000 Series chassis can accommodate multiple power supplies providing both chassis-level and facility power fault tolerance.
Cisco Nexus 7000 series power supplies are more than 90-percent efficient, so less power is wasted as heat and more power is available for the system to use than with typical power supplies. The 6.0kW AC power supply module for the Cisco Nexus 7000 Series is a dual 20-ampere AC input power supply.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Designed For | Nexus 7000 Series, 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7010 Bundle |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Input Connectors | 2 x power IEC 320 EN 60320 C19 |
| Input Voltage | AC 110-240 V |
| Power Capacity | 6000 Watt |
| Compliant Standards | NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, ICE |
| Designed For | Cisco Nexus 7000 Series, 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7010 Bundle |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Frequency Required | 47 - 63 Hz |
| Humidity Range Operating | 10 - 90% |
| Input Connectors | 2 x power IEC 320 EN 60320 C19 |
| Input Voltage | AC 110-240 V |
| Input Voltage Range | AC 90 - 264 V |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Power Capacity | 6000 Watt |
