Notes:

Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

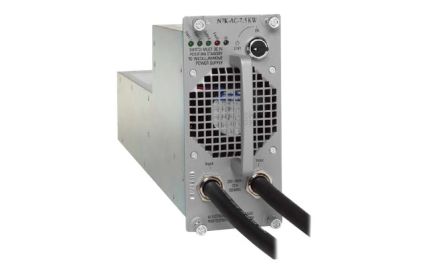

N7K-AC-7.5KW-US-RF

Cisco - power supply - hot-plug / redundant - 7500 Watt

The Cisco Nexus 7000 7.5kW AC dual 30A power supply module delivers fault tolerance, high efficiency, load sharing, and hot-swap features to the Cisco Nexus 7000 series.

In Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

Designed ForNexus 7000 Series, 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7010 Bundle
Device TypePower supply - hot-plug / redundant - plug-in module
Dimensions (WxDxH)4 in x 17.5 in x 8.5 in
Input Connectors2 x power NEMA L6-30
Input VoltageAC 200-240 V
LocalizationJapan, United States
Power Capacity7500 Watt
Remote Management ProtocolSNMP 1, SNMP 2, SNMP 3
Cables Included2 x power cable - integrated
Compliant StandardsNEBS level 3, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN5008
Depth17.5 in
Designed ForCisco Nexus 7000 Series, 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7010 Bundle
Device TypePower supply - hot-plug / redundant - plug-in module
Frequency Required47 - 63 Hz
Height8.5 in
Humidity Range Operating10 - 90%
Input Connectors2 x power NEMA L6-30
Input VoltageAC 200-240 V
Input Voltage RangeAC 170 - 264 V
LocalizationJapan, United States
Max Operating Temperature104
Min Operating Temperature32
MTBF341,536 hours
Power Capacity7500 Watt
Remote Management ProtocolSNMP 1, SNMP 2, SNMP 3
Weight23.15 lbs
Width4 in
