Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
N7K-C7009-FAB-2-RF
Nexus 7000 -9 SlotChas 110Gbps/Slot FabricMod REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

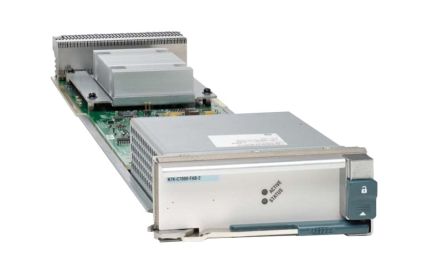

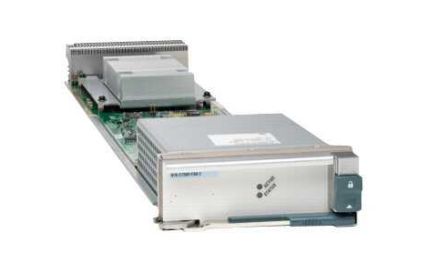

The N7K-C7009-FAB-2-RF is a professionally remanufactured Cisco Nexus 7009 Fabric Module 2, providing the high-speed switching fabric interconnect for the Nexus 7009 10-slot chassis. This second-generation fabric module delivers significantly higher per-slot bandwidth than the original Fabric-1, supporting up to 550Gbps per module slot and enabling non-blocking fabric performance for enterprise and data center core switching deployments using advanced M-Series and F-Series line cards.
This remanufactured fabric module meets Cisco's Nexus 7009 Fabric-2 performance and compatibility specifications. Each unit has been professionally tested for backplane interconnect integrity, bandwidth performance, and NX-OS compatibility with Nexus 7009 chassis configurations.
Key Features:
• Second-generation Nexus 7009 fabric providing up to 550Gbps per module slot
• Non-blocking switching fabric enabling line-rate performance on all slots
• Required for deployment with advanced M2-Series and F3-Series line cards
• Redundant fabric module slot support for high-availability fabric operation
• Full Cisco NX-OS integration for fabric health and utilization monitoring
• Essential upgrade for Nexus 7009 deployments requiring maximum fabric throughput
This refurbished fabric module is ideal for enterprise data center and campus core teams maintaining or upgrading Cisco Nexus 7009 switching infrastructure. By choosing a remanufactured Nexus Fabric-2 module, you upgrade your chassis switching capacity at a fraction of new hardware cost.
| Designed For | Nexus 7009 |
| Device Type | Switch - managed |
| Dimensions (WxDxH) | 4.5 in x 22.5 in x 1.8 in |
| Enclosure Type | Plug-in module |
| Performance | Per slot per fabric: 110 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Compliant Standards | ETSI, CSA, UL, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, |
| Depth | 22.5 in |
| Designed For | Cisco Nexus 7009 |
| Device Type | Switch - managed |
| Enclosure Type | Plug-in module |
| Height | 1.8 in |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 104 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -40 |
| MTBF | 445,881 hours |
| Performance | Per slot per fabric : 110 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Weight | 5.07 lbs |
| Width | 4.5 in |
