N7K-C7010-FAB-2-RF
Nexus 7000 - 10 Slot -110Gbps/Slot Fabric Mod REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

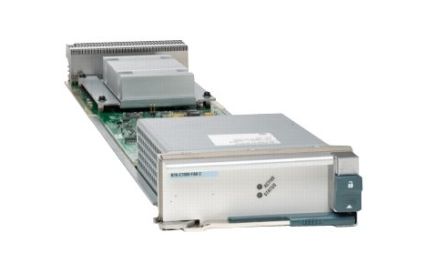

The N7K-C7010-FAB-2-RF is a professionally remanufactured Cisco Nexus 7010 Fabric Module 2, providing the high-speed switching fabric interconnect for the Nexus 7010 ten-slot chassis. The Fabric-2 delivers significantly higher per-slot bandwidth than the original Fabric-1 generation, supporting up to 550Gbps per module slot and enabling non-blocking operation for advanced M-Series and F-Series line card deployments in enterprise and data center core switching applications requiring maximum throughput.
This remanufactured fabric module meets Cisco's Nexus 7010 Fabric-2 performance and NX-OS compatibility specifications. Each unit has been tested for fabric interconnect bandwidth performance, backplane slot compatibility, and Nexus 7010 chassis integration.
Key Features:
• Nexus 7010 second-generation fabric delivering up to 550Gbps per module slot
• Non-blocking switching fabric enabling line-rate performance across all ten slots
• Required for advanced M2-Series and F3-Series line card maximum performance
• N+1 fabric redundancy through multiple fabric module slot support
• Full Cisco NX-OS integration for fabric health and utilization monitoring
• Critical upgrade for maximum throughput in Nexus 7010 core deployments
This refurbished fabric module is ideal for enterprise data center teams maintaining or upgrading Cisco Nexus 7010 core switching infrastructure to full Fabric-2 capacity. By choosing a remanufactured Cisco Nexus 7010 Fabric-2, you upgrade chassis switching bandwidth at a fraction of new hardware cost.
| Designed For | Nexus 7010 Bundle |
| Device Type | Switch - managed |
| Dimensions (WxDxH) | 14.9 in x 7.3 in x 1.7 in |
| Enclosure Type | Plug-in module |
| Performance | Per slot per fabric: 110 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Compliant Standards | ETSI, CSA, UL, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, |
| Depth | 7.3 in |
| Designed For | Cisco Nexus 7010 Bundle |
| Device Type | Switch - managed |
| Enclosure Type | Plug-in module |
| Height | 1.7 in |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 104 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -40 |
| MTBF | 369,052 hours |
| Performance | Per slot per fabric : 110 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Weight | 3.97 lbs |
| Width | 14.9 in |
