N7K-C7018-FAB-2-RF

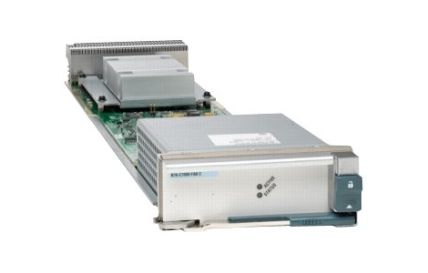

Cisco Nexus 7000 Series 18-Slot Chassis 110Gbps/Slot Fabric Module - switch - managed - plug-in module
The Cisco Nexus 7000 Series Switches provide the foundation of the Cisco Unified Fabric. They are a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks with a fabric architecture that scales beyond 15 terabits per second (Tbps). Designed to meet the requirements of the most mission-critical data centers, it delivers continuous system operation and virtualized, pervasive services. The Cisco Nexus 7000 Series is based on a proven operating system, with enhanced features to deliver real-time system upgrades with no service disruption together with exceptional manageability and serviceability.
Switch fabric scalability is made possible through the support of from one to five concurrently active fabric modules for increased performance as your needs grow. All fabric modules are connected to all module slots. The architecture supports lossless fabric failover, with the remaining fabric modules load balancing the bandwidth to all the I/O module slots, helping ensure graceful degradation.
The combination of the Cisco Nexus 7000 Series fabric module and the supervisor and I/O modules supports virtual output queuing (VOQ) and credit-based arbitration to the crossbar switch to increase performance of the distributed forwarding system. VOQ and credit-based arbitration facilitate fair sharing of resources when a speed mismatch or contention for an uplink interface exists. The fabric architecture also enables future support for lossless Ethernet and unified I/O capabilities.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Device Type | Switch - managed |
| Dimensions (WxDxH) | 14.8 in x 7.3 in x 1.7 in |
| Enclosure Type | Plug-in module |
| Performance | Per slot per fabric: 110 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Compliant Standards | NEBS level 3, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN5008 |
| Depth | 7.3 in |
| Device Type | Switch - managed |
| Enclosure Type | Plug-in module |
| Height | 1.7 in |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 104 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -40 |
| MTBF | 296,947 hours |
| Performance | Per slot per fabric : 110 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Weight | 7.5 lbs |
| Width | 14.8 in |
