N7K-DC-6.0KW-RF

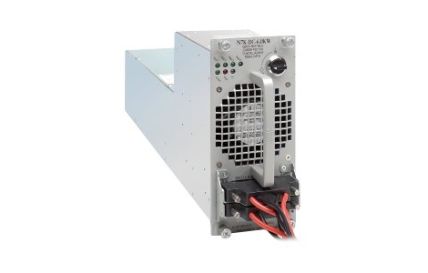

Cisco Nexus 7000 6.0kW DC Power Supply Module - power supply - hot-plug / redundant - 6000 Watt
The Cisco Nexus 7000 6.0kW DC Power Supply Module is a variable-output, high-capacity power supply scalable from 3000 to 6000W. It delivers fault-tolerant load-sharing capability together with full support for hot-swappable DC power to the Cisco Nexus 7000 Series.
The dual input 6.0-kW DC power supply is optimized for service provider central-office deployments. By providing support for multiple inputs, the DC power supply allows customers to customize the output power to meet their application needs. DC power connections are made using a hot-swap DC power cable that enables quick and easy installation of the power supplies without the need to disturb the DC terminal blocks. The DC cable supports both direct connection to DC power sources and connection to an intermediate power interface unit in situations in which connections to the source are beyond the cable length.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Designed For | Nexus 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 9-Slot Chassis |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Dimensions (WxDxH) | 4 in x 21.2 in x 8.5 in |
| Input Voltage | -48 - -60 V |
| Manufacturer Warranty | 1 year warranty |
| Power Capacity | 6000 Watt |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 |
| Depth | 21.2 in |
| Designed For | Cisco Nexus 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 9-Slot Chassis |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Height | 8.5 in |
| Input Voltage | -48 - -60 V |
| Max Electric Current | 40 A |
| MTBF | 200,000 hours |
| Power Capacity | 6000 Watt |
| Service & Support Details | Limited warranty - 1 year |
| Service & Support | 1 year warranty |
| Weight | 20.94 lbs |
| Width | 4 in |
