Notes:
Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
N7K-SUP2E-RF

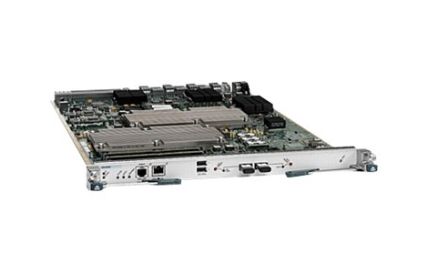

Cisco Supervisor2 Enhanced - control processor
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
Cisco Supervisor2 Enhanced - control processor
| Designed For | Nexus 7000, 7009, 7010, 7010 Fabric-2 |
| Device Type | Control processor |
| Dimensions (WxDxH) | 15.3 in x 21.9 in x 1.2 in |
| Flash Memory | 8 GB |
| Form Factor | Plug-in module |
| Processor | 2 x Intel Xeon 2.13 GHz |
| RAM | 32 GB |
| Compliant Standards | NEBS level 3, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, |
| Connectivity Technology | Wired |
| Depth | 21.9 in |
| Designed For | Cisco Nexus 7000 Series, 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 110Gbps/Slot Fabric Module, 7000 Series 1 |
| Device Type | Control processor |
| Flash Memory | 8 GB |
| Form Factor | Plug-in module |
| Height | 1.2 in |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Interfaces | 1 x management - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| OS Provided | Cisco NX-OS 6.0 or later |
| Processors Installed | 2 x Intel Xeon 2.13 GHz |
| RAM | 32 GB DDR3 SDRAM |
| Remote Management Protocol | SNMP, CLI |
| Status Indicators | Power, active, standby, status |
| Weight | 11.57 lbs |
| Width | 15.3 in |
