NC6-20X100GE-MC-RF
NCS6000 20x100GE MS Linecard Combo Optics REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

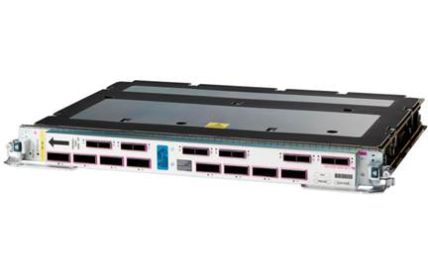

The NC6-20X100GE-MC is the Cisco Network Convergence System (NCS) 6000 Series 20-Port 100 Gigabit Ethernet multiservice line card with combo optics and Cisco AnyPort Technology.
Key features and specifications:
Software compatibility: Virtualized Cisco IOS-XR Software Release 6.2.2 or later.
Port density: 20 ports of 100 Gigabit Ethernet per line card slot; supports up to 80 ports of 10 Gigabit Ethernet short-reach optics using Cisco CPAK-100G-SR10 and the break-out panel NCS-PP-100X10-SR, or using Cisco CPAK-100G-LR10 and the break-out panel NCS-PP-100X10-LR.
Ethernet compliance: IEEE 802.3ba compliant, with 100 Gigabit Ethernet Physical layer (PHY) monitoring and IEEE 802.x flow control.
Optical Transport Network (OTN) framing: Supports OTU-4 framing.
Features and protocols:
IP features including IPv4 and IPv6 unicast services, Equal-Cost Multipath (ECMP) routing, and load balancing.
Forwarding features such as Access Control Lists (ACLs and xACLs), QoS and Class of Service (CoS) with modular QoS CLI, IP packet classification and marking, queuing, policing, and diagnostic/network management support.
IPv4 multicast features including Protocol-Independent Multicast (PIM) forwarding, multicast priority propagation, Multicast Reverse Path Forwarding (RPF), Multicast Nonstop Forwarding (NSF), and Multicast Forwarding Information Base (MFIB).
MPLS features including MPLS forwarding, load balancing, traffic engineering, Point-to-Multipoint (P2MP) traffic engineering, Policy-Based Traffic Engineering Selection (PBTS), MPLS OAM, User-Network Interface (UNI), MPLS FastReroute (FRR), and Link Management Protocol (LMP).
Security features such as access control lists, Unicast Reverse Path Forwarding (uRPF), Dynamic Control Plane Protection (DCoPP), management plane protection, and QoS-based policy propagation through Border Gateway Protocol (BGP).
Error detection and fast convergence features including Bidirectional Forwarding Detection (BFD), Ethernet OA&M (802.1ag and 802.3ah), IP and MPLS Fast Reroute (FRR), and BGP Prefix-Independent Convergence.
Accounting features like Cisco NetFlow, BGP policy accounting, and MAC accounting.
Segment Routing support.
Performance: Line-rate packet forwarding and service, nonblocking fabric performance for all IPv4, IPv6, and MPLS packet sizes, full bidirectional 2-Tbps throughput, and supports up to 8 line cards per chassis.
Reliability and availability: Supports line card Online Insertion and Removal (OIR) without affecting the system, in-service system upgrade of the switch fabric from single-chassis to multichassis, In-Service Software Upgrade, and coexistence of multiservice and Label Switch Router (LSR) cards in the same system.
Network management: Cisco IOS XR Software CLI, Netconf & Yang support, SNMP, XML interface, telemetry, Cisco Prime Network, and EPNM.
Physical dimensions: Occupies a full slot in a Cisco NCS 6000 Series chassis; size 22.5 in. x 15.75 in. x 2.1 in.; weight 28 lb.
Environmental conditions: Compliant with GR-63-CORE requirements; storage temperature -40 to 158°F (-40 to 70°C); operating temperature normal 41 to 104°F (5 to 40°C), short-term 23 to 122°F (-5 to 50°C); relative humidity normal 5 to 85%
