NIM-1MFT-T1/E1-RF
1ptMultflexTrunkVoice/ClearChannlDataT1/E1Mod REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

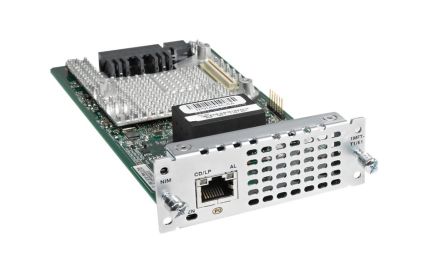

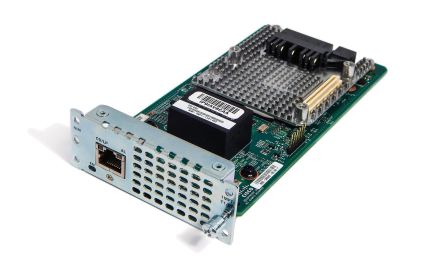

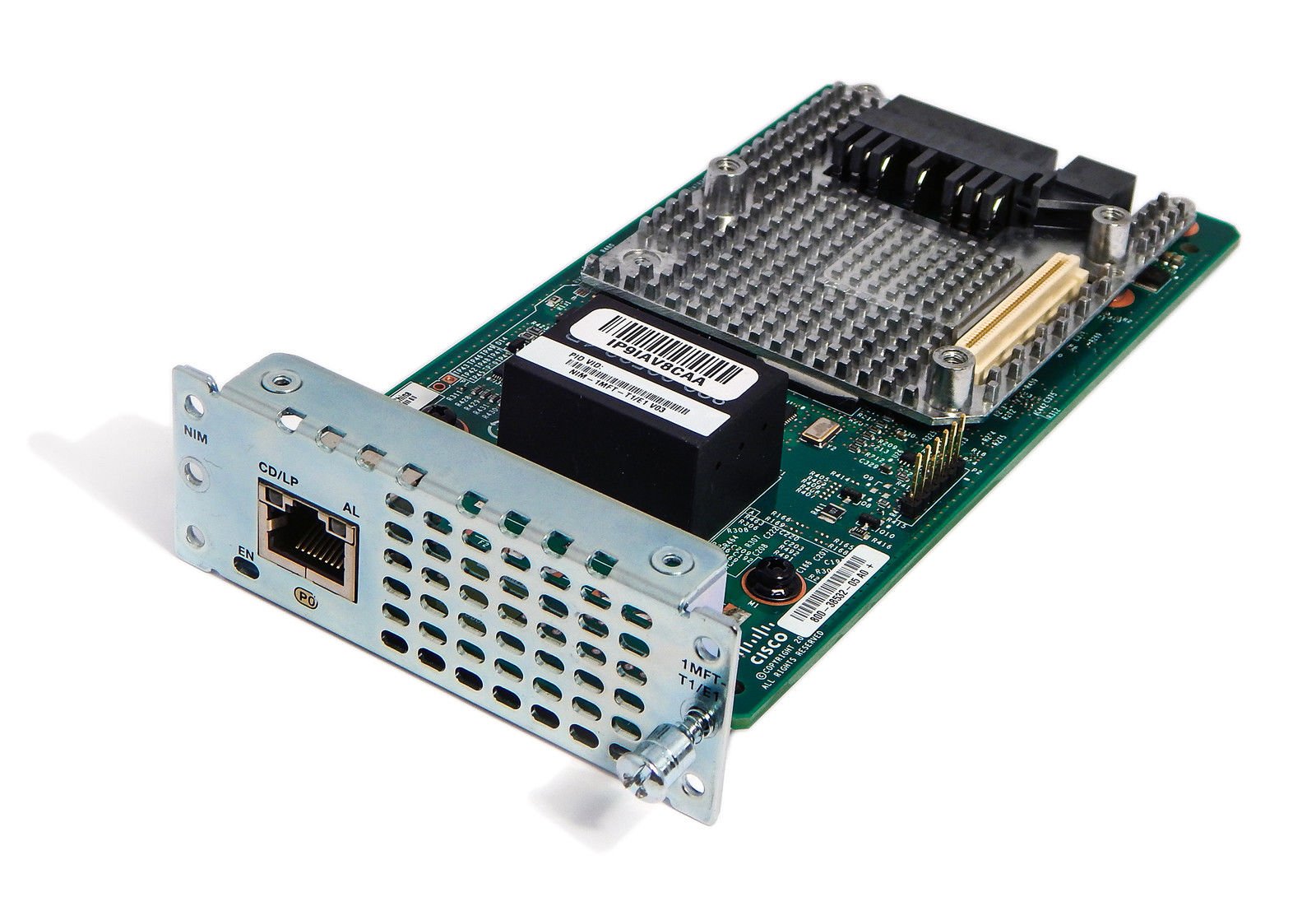

The Cisco NIM-1MFT-T1/E1 is a 1-port Multi-flex Trunk Voice and Clear-channel Data T1/E1 Network Interface Module designed for Cisco 4000 Series Integrated Services Routers (ISRs) and other compatible platforms. It provides both data and voice support on T1/E1 trunks and supports simultaneous data and voice applications.
Key Features:
Single port supporting T1 and E1 interfaces.
Clear-channel data and packet voice capabilities.
Supports fractional T1 and fractional E1 for voice and WAN applications.
Includes an onboard Cisco Packet Voice Digital Signal Processor Module 4 (PVDM4) slot required for voice features such as echo cancellation.
Supports drop-and-insert multiplexing, eliminating the need for external channel service units/data service units (CSUs/DSUs).
Each port can be clocked independently for data applications; voice ports are synchronized to a single clock source.
Supports remote and local configuration, monitoring, and troubleshooting via Cisco IOS XE Software CLI and SNMP.
Weight approximately 0.40 lb (181g).
LEDs on the front panel indicate status such as carrier detect, loopback, and alarms.
Compatible with Cisco 4000 Series ISR platforms and supported on Cisco ENCS platforms with ISRv XE SD-WAN 16.9.
Supports voice protocols including H.323, SIP, MGCP, and SCCP.
Provides integration for PBX and PSTN connectivity.
Enables mixed data and packet voice applications, reducing network complexity and cost.
Applications:
Packet voice solutions for PBX and central-office connectivity.
Multiplexed data and voice solutions with integrated DSU/CSU.
Analog cross-connect solutions by cross-connecting TDM DS-0 channels with analog voice ports.
| Data Transfer Rate | 2.048 Mbps |
| Designed For | Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 3.5 in x 7.2 in x 1.3 in |
| Form Factor | Plug-in module |
| Line Rate | T-1/E-1 |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.048 Mbps |
| Depth | 7.2 in |
| Designed For | Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bund |
| Device Type | Expansion module |
| Features | Integrated CSU/DSU |
| Form Factor | Plug-in module |
| Height | 1.3 in |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Interfaces | 1 x T1/E1 |
| Line Coding Format | AMI, B8ZS, HDB3 |
| Line Rate | T-1/E-1 |
| Max Operating Temperature | 122 |
| Min Operating Temperature | 32 |
| Remote Management Protocol | SNMP, Telnet |
| Status Indicators | Carrier detect, alarm |
| Weight | 6.38 oz |
| Width | 3.5 in |
