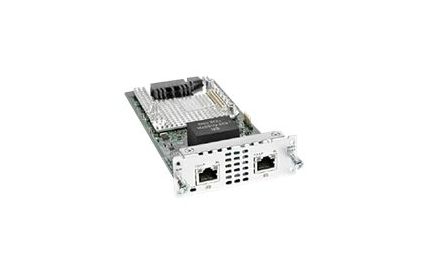

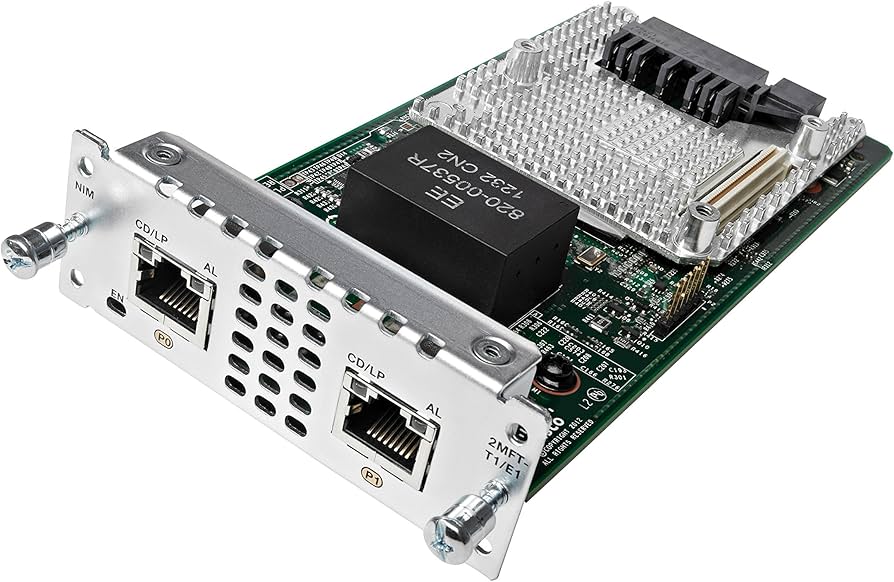

NIM-2MFT-T1/E1-RF
Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module - expansion module - T1/E1 x 2
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The Cisco NIM-2MFT-T1/E1 is a 4th-generation 2-port Multiflex Trunk (MFT) Voice and WAN Network Interface Module (NIM) designed for the Cisco 4000 Series Integrated Services Routers (ISR 4000). It provides two T1/E1 ports that can be configured for either voice or data applications, consolidating the functions of a WAN interface card (WIC), voice interface card (VIC), ISDN PRI, dial-access integration, and DSU/CSU into a single module. This makes it ideal for branch offices that need to connect T1 or E1 lines to the PSTN or a PBX while simultaneously carrying IP data traffic.
This remanufactured unit has been professionally inspected, tested, and restored to meet Cisco quality standards, delivering the same reliable performance as new. The module supports T1 (1.544 Mbps) and E1 (2.048 Mbps) interfaces with AMI/B8ZS line coding, ESF/D4 framing (T1), and HDB3/AMI (E1). It includes an onboard PVDM4 slot for voice DSP processing, enabling packet voice (H.323, SIP, MGCP, SCCP), ISDN PRI, CAS signaling, and drop-and-insert TDM multiplexing. Each port can be clocked from an independent clock source for data applications.
Key Features:
• 2 x T1/E1 ports supporting voice (CAS, PRI) and clear-channel WAN data applications
• Combines WIC, VIC, ISDN PRI, DSU/CSU, and drop-and-insert multiplexer functions in one module
• Onboard PVDM4 slot for voice DSP processing (PVDM4 module sold separately)
• Supports H.323, SIP, MGCP, and SCCP voice over IP protocols
• Echo cancellation up to 128 ms echo-tail length via PVDM4
• Independent per-port clocking for data applications; single clock domain for voice
• Compatible with Cisco ISR 4000 Series routers (ISR 4321, 4331, 4351, 4431, 4451)
This module is an excellent choice for branch offices requiring integrated voice and WAN data connectivity over T1 or E1 lines. By choosing remanufactured Cisco components, you are making an environmentally responsible decision while maintaining the performance and compatibility your network infrastructure demands.
| Data Transfer Rate | 2.048 Mbps |
| Designed For | Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 3.5 in x 7.2 in x 1.3 in |
| Form Factor | Plug-in module |
| Line Rate | T-1/E-1 |
| Ports | T1/E1 x 2 |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.048 Mbps |
| Depth | 7.2 in |
| Designed For | Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bund |
| Device Type | Expansion module |
| Features | Integrated CSU/DSU |
| Form Factor | Plug-in module |
| Height | 1.3 in |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Interfaces | 2 x T1/E1 |
| Line Coding Format | AMI, B8ZS, HDB3 |
| Line Rate | T-1/E-1 |
| Max Operating Temperature | 122 |
| Min Operating Temperature | 32 |
| Ports | T1/E1 x 2 |
| Remote Management Protocol | SNMP, Telnet |
| Status Indicators | Carrier detect, alarm |
| Weight | 6.74 oz |
| Width | 3.5 in |
