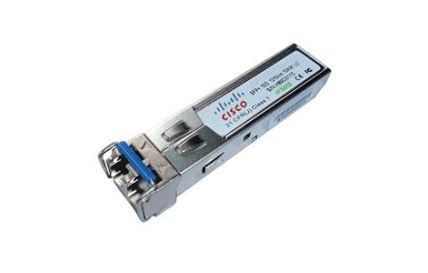

ONS-SC+-10G-LR-RF
SFP+ LR - Commercial Temp - REMANUFACTURED
The SFP transceiver module is a bidirectional device with a transmitter and receiver in the same physical package. The module interfaces to the network through a connector interface on the electrical ports and through an LC termination connector on the optical ports. Electrical interfaces and dimensions are defined in the SFF-8472 industry-standard multi-source agreement (MSA).
In the transmit direction, the SFP transceiver module receives the electrical signal and transmits this data in an optical signal by using a laser driver that controls the laser diode. The optical output power is held constant by an automatic power control circuit.
In the receive direction, the SFP transceiver module receives an NRZ optical signal and converts it to an electrical equivalent. The receive portion of the module will use some kind of amplifier to control the converted electrical signal.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Cabling Type | 10GBase-LR |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Device Type | SFP+ transceiver module - LC single mode |
| Form Factor | Plug-in module |
| Max Transfer Distance | 6.2 miles |
| Optical Wave Length | 1260-1355 nm |
| Cabling Type | 10GBase-LR |
| Compatible Slots | 1 x SFP+ |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Interfaces | 1 x Ethernet 10GBase-LR - LC single mode x 2 |
| Max Operating Temperature | 158 |
| Max Transfer Distance | 6.2 miles |
| Min Operating Temperature | 32 |
| Optical Wave Length | 1260-1355 nm |
