Notes:
Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.

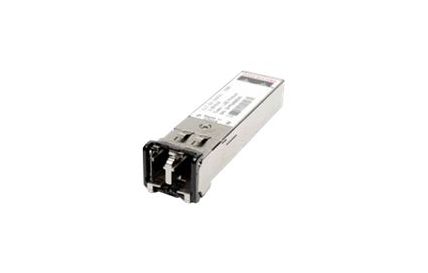

ONS-SC-Z3-1570-RF
SFP -OC48/STM16/GE,CWDM,1570 nmCommercialTemp REMANUFACTURED
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
An SFP transceiver module is a bidirectional device with a transmitter and receiver in the same physical package. The module interfaces to the network through a connector interface on the electrical ports and through an LC termination connector on the optical ports. Electrical interfaces and dimensions are defined in the SFF-8472 industry-standard multisource agreement (MSA).
| Cabling Type | CWDM |
| Data Link Protocol | Gigabit Ethernet |
| Designed For | ONS 15454, 15454 4-Channel Multiplexer/Demultiplexer, 15454 MSTP Fixed Optical Filter Card, 15454 Optical Filter, 15454 SONET 12-Port DS-3 Transmultiplexer Card |
| Device Type | SFP (mini-GBIC) transceiver module - LC single mode |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 5 years warranty |
| Max Transfer Distance | 49.7 miles |
| Optical Wave Length | 1570 nm |
| Cabling Type | CWDM |
| Compliant Standards | MSA SFF-8472 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Depth | 2.2 in |
| Designed For | Cisco ONS 15454 |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Height | 0.3 in |
| Interfaces | 1 x CWDM - LC single mode x 2 |
| Line Rate | OC-48/STM-16 |
| Max Operating Temperature | 158 |
| Max Transfer Distance | 49.7 miles |
| Min Operating Temperature | 32 |
| Optical Wave Length | 1570 nm |
| Service & Support Details | Limited warranty - 5 years |
| Service & Support | 5 years warranty |
| Width | 0.5 in |
