Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
PVDM3-256-RF

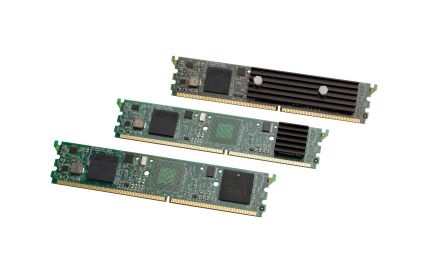

Cisco 256-Channel High-Density Packet Voice and Video Digital Signal Processor Module - voice DSP module - DIMM 240-pin
Cisco 256-Channel High-Density Packet Voice and Video Digital Signal Processor Module - voice DSP module
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bus Voltage | 3.3 V |
| Compliant Standards | G.711, G.729a, G.729ab, G.726, G.722, G.728, G.729, G.729b |
| Designed For | Cisco 2901, 2911, 2921, 2951, 3925, 3925E, 3945, 3945E |
| Device Type | Voice DSP module |
| Form Factor | Plug-in module |
| Interface (Bus) Type | DIMM 240-pin |
| RAM | 512 MB |
| Bus Voltage | 3.3 V |
| Compatible Slots | 1 x expansion slot - DIMM 240-pin |
| Compliant Standards | CISPR 22 Class B, CISPR 24, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN50082-1, EN55022 Class B, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN |
| Connectivity Technology | Wired |
| Designed For | Cisco 2901, 2901 Secure WAAS Bundle, 2901 Security Bundle, 2901 SRE Bundle, 2901 Terminal Server Bundle, 2901 Voice Bundle, 2901 Voice Security and CU |
| Device Type | Voice DSP module |
| Form Factor | Plug-in module |
| Interface (Bus) Type | DIMM 240-pin |
| Max Operating Temperature | 131 |
| Min Operating Temperature | 23 |
| RAM | 512 MB |
