Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
PWR-C1-1100WACP-RF
1100W AC 80+ platinum Config 1 Power Supply REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

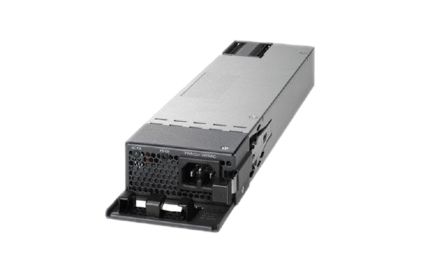

The PWR-C1-1100WACP is a power supply unit designed for Cisco Catalyst switches, providing a maximum output power of 1100W. It operates with an input voltage range of 115 to 240 VAC at 50 to 60 Hz and has an input current of 12 to 6 A. The output rating is -56 V at 19.64 A, with a minimum output holdup time of 10 ms at 100 VAC. The power supply uses an IEC 320-C16 input receptacle and supports a power cord rated at 15A. Its physical dimensions are approximately 1.58 x 3.25 x 13.7 inches, and it weighs about 3.1 pounds (1.4 kg).
Additional specifications include:
Total output heat dissipation of about 3793 BTU/hr (equivalent to 1100W).
It is a redundant power supply option.
Compatible with Cisco Catalyst 9300 Series switches and Meraki MS390 switches.
The power supply is autoranging and supports various AC power cords depending on locale.
This power supply is designed to ensure reliable power delivery with features such as LED indicators for input power ("AC OK") and output power ("PS OK") status. It is suitable for enterprise network environments requiring high power capacity and redundancy
